Database Description#
Database Structure#

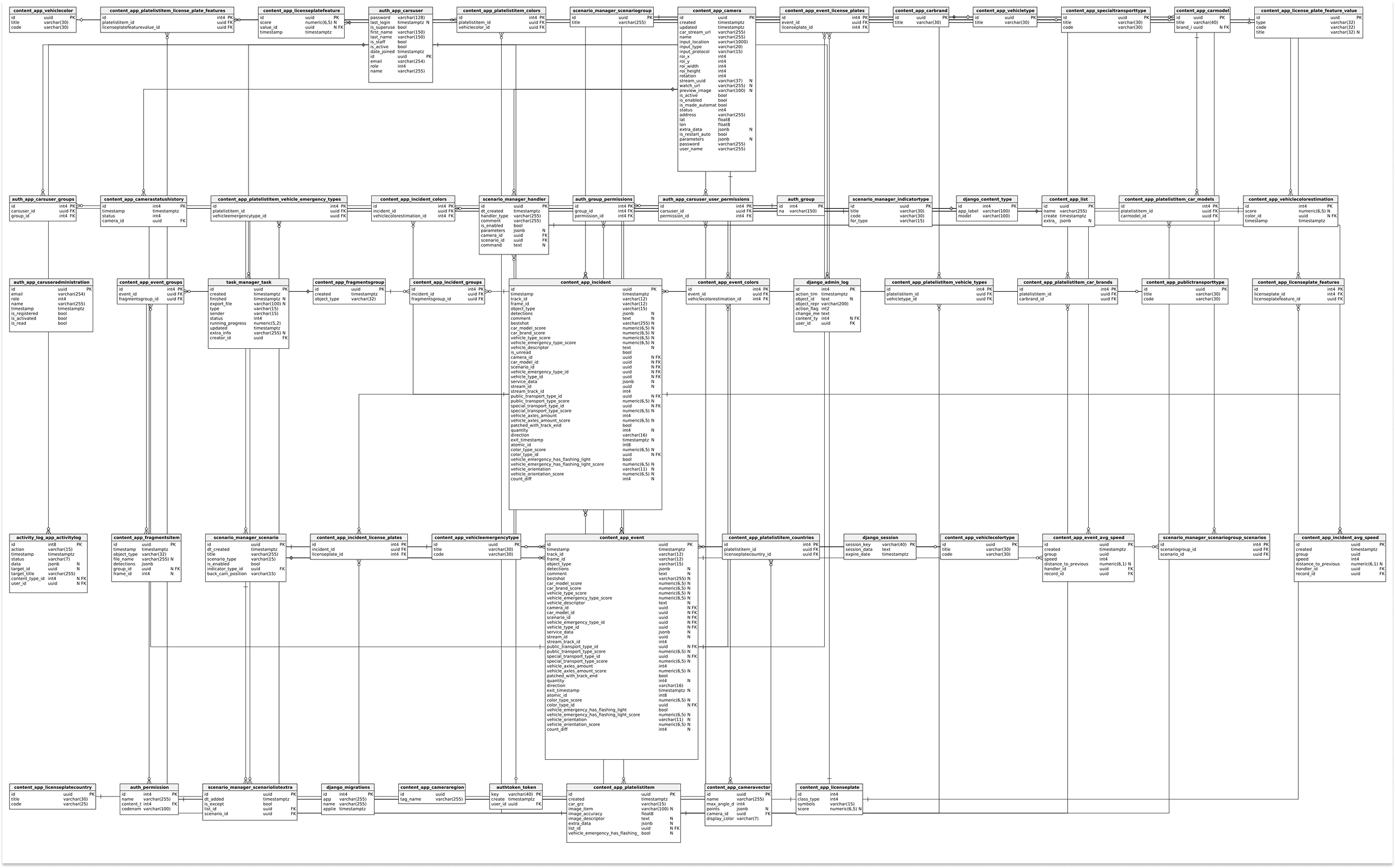

The general scheme of table relations in the CARS_Analytics database (Figure 3).
Database Tables#
content_app_vehiclecolor#
Table 3. Description of table content_app_vehiclecolor
| Field | Type | Description | Relations |
|---|---|---|---|
| id | uuid | Vehicle color ID | DB – content_app_platelistitem_color, column – color_id |
| title | varchar | Color name | - |
| code | varchar | Color cide | - |
content_app_platelistitem_license_plate_features#
This is an intermediate table. It references the tables content_app_platelistitem (column id) and content_app_licenseplatefeaturevalue (column id), establishing a link between records and values of license plate features.
This is a many-to-many relationship, which means that one record in a table can be linked to several records, and similarly, one record in another table can be linked to multiple records in the first table.
content_app_licenseplatefeature#
Table 4. Description of table content_app_licenseplatefeature
| Field | Type | Description | Relations |
|---|---|---|---|
| id | uuid | The license plate feature ID | DB – content_app_platelistitem_license_plate_features, column – platelistitem_id |
| score | numeric | Quality rating value of the license plate feature | - |
| value_id | uuid | The license plate feature value ID | DB - content_app_platelistitem_license_plate_features, column - licenseplatefeaturevalue_id |
| timestamp | timestamptz | Time of recognition of the license plate feature | - |
auth_app_caruser#
Table 5. Description of table auth_app_caruser
| Field | Type | Description |
|---|---|---|
| password | varchar | User's password |
| last_login | timestamptz | Date and time of last login |
| is_superuse | bool | Indicates if the user is a superuser (full system access) |
| timestamp | timestamptz | Time of the last record update |
| first_name | varchar | User's first name |
| last_name | varchar | User's last name |
| is_staff | bool | Indicates if the user is a staff member (access to the admin interface) |
| is_active | bool | Indicates if the user is active (can/cannot log in) |
| date_joined | timestamptz | User's registration date |
| id | uuid | User ID |
| varchar | Email address (login) | |
| role | int4 | User's role in the system |
| name | varchar | Full or display name of the user |
content_app_platelistitem_color#
This is an intermediate table. It references the tables content_app_platelistitem (column id) and content_app_vehiclecolor (column id), establishing a link between license plate records and the corresponding vehicle colors.
This is a many-to-many relationship, which means that one record in a table can be linked to several records, and similarly, one record in another table can be linked to multiple records in the first table.
scenario_manager_scenariogroup#
Table 6. Description of table scenario_manager_scenariogroup
| Field | Type | Description | Relations |
|---|---|---|---|
| id | uuid | Scenario ID | DB – content_app_event, column – scenario_id |
| DB – content_app_incident, column – scenario_id | |||
| DB – scenario_manager_handler, column – scenario_id | |||
| DB – scenario_manager_scenariolistextra, column – scenario_id | |||
| title | varchar | Scenario name | - |
content_app_camera#
Table 7. Description of table content_app_camera
| Field | Type | Description |
|---|---|---|
| id | uuid | Camera ID |
| created | timestamptz | Date and time of camera creation |
| updated | timestamptz | Date and time of camera update |
| car_stream_url | varchar | Camera URL |
| name | varchar | Camera name |
| input_location | varchar | RTSP video stream address or video file location |
| input_type | varchar | Source type - video file or RTSP |
| input_protocol | varchar | Video streaming protocol |
| roi_x | int4 | The value of the horizontal coordinate of the the detection area |
| roi_y | int4 | The value of the vertical coordinate of the detection area |
| roi_width | int4 | Detection area length |
| roi_height | int4 | Detection area width |
| rotation | int4 | Video stream rotation angle |
| stream_uuid | varchar | Video stream ID |
| watch_url | varchar | Link to CARS_Stream visual mode |
| preview_image | varchar | Image displayed on camera preview |
| is_active | bool | Camera activity status |
| is_enabled | bool | Camera operation status |
| is_made_automatically | bool | Camera creation method - manual or automatic |
| status | int4 | Video stream status |
| address | varchar | Physical address of the camera location |
| lat | float8 | Camera geolocation latitude |
| lon | float8 | Camera location longitude |
| extra_data | jsonb | Field for additional information |
| is_restart_auto | bool | Camera auto restart status |
| parameters | jsonb | Camera parameters (e.g. detector size, thresholds, FGS usage, etc.) |
| password | varchar | Password for accessing the ANPR camera |
| user_name | varchar | Username for accessing the ANPR camera |
content_app_event_license_plates#
This is an intermediate table. It references the tables content_app_event (column id) and content_app_licenseplate (column id), establishing a link between event records and the corresponding license plates.
This is a many-to-many relationship, which means that one record in a table can be linked to several records, and similarly, one record in another table can be linked to multiple records in the first table.
content_app_carbrand#
Table 8. Description of table content_app_carbrand
| Field | Type | Description | Relations |
|---|---|---|---|
| id | uuid | Vehicle brand ID | DB – content_app_carmodel, column – brand_id |
| DB – content_app_platelistitem_car_brands, column – carbrand_id | |||
| title | varchar | Vehicle brand name | - |
content_app_vehicletype#
Table 9. Description of table content_app_vehicletype
| Field | Type | Description | Relations |
|---|---|---|---|
| id | uuid | Vehicle type ID | DB – content_app_event, column– vehicle_type_id |
| DB – content_app_incident, column – vehicle_emergency_type_id | |||
| DB – content_app_platelistitem, column – list_id | |||
| titile | varchar | Vehicle type name | - |
content_app_specialtransporttype#
Table 10. Description of table content_app_specialtransporttype
| Field | Type | Description | Relations |
|---|---|---|---|
| id | uuid | Special transport type ID | DB - content_app_event, column - special_transport_type_id |
| DB – content_app_incident, column - special_transport_type_id | |||
| DB – content_app_platelistitem, column – list_id | |||
| title | varchar | Special transport name | - |
| code | varchar | Special transport code | - |
content_app_carmodel#
Table 11. Description of table content_app_carmodel
| Field | Type | Description | Relations |
|---|---|---|---|
| id | uuid | Vehicle model ID | DB – content_app_event, column – car_model_id |
| DB – content_app_incident, column – car_model_id | |||
| DB – content_app_platelistitem_car_models, column – car_model_id | |||
| title | varchar | Vehicle model name | - |
| brand_id | uuid | Vehicle brand ID | DB – content_app_carbrand, column – id |
content_app_license_plate_feature_value#
Table 12. Description of table content_app_license_plate_feature_value
| Field | Type | Description | Relations |
|---|---|---|---|
| id | uuid | License plate feature value ID | DB – content_app_licenseplatefeature, column – value_id |
| DB – content_app_platelistitem_license_plate_feature, column – licenseplatefeaturevalue_id | |||
| type | varchar | License plate feature type | - |
| code | varchar | License plate feature code | - |
| title | varchar | License plate feature name | - |
auth_app_caruser_groups#
This is an intermediate table. It references the tables auth_app_caruser (column id) and auth_group_permissions (column permission_id), establishing a link between users and their groups.
This is a many-to-many relationship, which means that one record in a table can be linked to several records, and similarly, one record in another table can be linked to multiple records in the first table.
content_app_camerastatushistory#
Table 13. Description of table content_app_camerastatushistory
| Field | Type | Description | Relations |
|---|---|---|---|
| id | int4 | Record ID for the status history | – |
| timestamp | timestamptz | Time of status change for the camera | - |
| status | int4 | Camera status | - |
| camera_id | uuid | Camera ID associated with the record | DB - content_app_camera, column - id |
content_app_platelistitem_vehicle_emergency_types#
This is an intermediate table. It references the tables content_app_platelistitem (column id) and content_app_vehicleemergencytype (column id), establishing a link between license plates and emergency services.
This is a many-to-many relationship, which means that one record in a table can be linked to several records, and similarly, one record in another table can be linked to multiple records in the first table.
content_app_incident_colors#
This is an intermediate table. It references the tables content_app_incident (column id) and content_app_vehiclecolorestimation (column id), establishing a link between incidents and vehicle color estimations.
This is a many-to-many relationship, which means that one record in a table can be linked to several records, and similarly, one record in another table can be linked to multiple records in the first table.
scenario_manager_handler#
Table 14. Description of table scenario_manager_handler
| Field | Type | Description | Relations |
|---|---|---|---|
| id | uuid | Handler ID | - |
| dt_created | timestamp | Date and time of handler creation | - |
| handler_type | varchar | Handler type | - |
| comment | varchar | Handler comment | - |
| is_enabled | bool | Handler activity status | - |
| parameters | jsonb | Handler parameters | - |
| camera_id | uuid | Camera ID | DB – content_app_camera, column – id |
| scenario_id | uuid | Scenario ID | DB – scenario_manager_scenario, column – id |
| command | text | Command name | - |
auth_group_permissions#
This is an intermediate table. It references the tables auth_group (column id) and auth_permission (column id), establishing a link between groups and their permissions.
This is a many-to-many relationship, which means that one record in a table can be linked to several records, and similarly, one record in another table can be linked to multiple records in the first table.
auth_app_caruser_user_permissions#
This is an intermediate table. It references the tables auth_app_caruser (column id) and auth_permission (column id), establishing a link between users and their access rights.
This is a many-to-many relationship, which means that one record in a table can be linked to several records, and similarly, one record in another table can be linked to multiple records in the first table.
auth_group#
Table 15. Description of table auth_group
| Field | Type | Description |
|---|---|---|
| id | int4 | Access rights group identifier |
| name | varchar | Access rights group name |
scenario_manager_indicatortype#
Table 16. Description of table scenario_manager_indicatortype
| Field | Type | Description | Relations |
|---|---|---|---|
| id | uuid | Scenario ID | - |
| title | varchar | Scenario name | - |
| code | varchar | Scenario code | - |
| for_type | varchar | Scenario type | - |
django_content_type#
Table 17. Description of table django_content_type
| Field | Type | Description |
|---|---|---|
| id | int4 | Content type record identifier |
| app_label | varchar | Name of the application to which the model belongs (e.g., «content_app», «scenario_manager») |
| model | varchar | Name of the model in the application (e.g., «vehicletype», «indicatortype») |
content_app_list#
Table 18. Description of table content_app_list
| Field | Type | Description |
|---|---|---|
| id | uuid | List ID |
| name | varchar | List name |
| create | timestamptz | Date of list creation |
| extra | jsonb | Field for additional information |
content_app_platelistitem_car_models#
This is an intermediate table. It references the tables content_app_platelistitem (column id) and content_app_carmodel (column id), establishing a link between license plates and the corresponding vehicle models.
This is a many-to-many relationship, which means that one record in a table can be linked to several records, and similarly, one record in another table can be linked to multiple records in the first table.
content_app_vehiclecolorestimation#
Table 19. Description of table content_app_vehiclecolorestimation
| Field | Type | Description | Relations |
|---|---|---|---|
| id | int4 | ID of the color estimation record | – |
| score | numeric | Color recognition score of the vehicle | - |
| color_id | uuid | ИVehicle color ID | DB - content_app_vehiclecolor, сolumn - id |
| timestamp | timestamptz | Time of the last record update | - |
auth_app_caruseradministration#
Table 20. Description of table auth_app_caruseradministration
| Field | Type | Description | Relations |
|---|---|---|---|
| id | uuid | User's ID | - |
| varchar | User's email address (login) | – | |
| role | int4 | User's role in the system | DB – content_app_caruser, column – role |
| name | varchar | User's full or display name | – |
| timestamp | timestamptz | Time of the last record update | - |
| is_registered | bool | User's registration status (registered or not) | - |
| is_activated | bool | User's activation status (activated or not) | - |
| is_read | bool | User's status on reading certain information | - |
content_app_event_groups#
This is an intermediate table. It references the tables content_app_event (column id) and content_app_fragmentsgroup (column id), establishing a link between events and the fragments related to those events.
This is a many-to-many relationship, which means that one record in a table can be linked to several records, and similarly, one record in another table can be linked to multiple records in the first table.
task_manager_task#
Table 21. Description of table task_manager_task
| Field | Type | Description | Relations |
|---|---|---|---|
| id | uuid | Task ID | - |
| created | timestamptz | Date and time of task creation | - |
| finished | timestamptz | Date and time of task completion | - |
| export_file | varchar | Path to the file associated with the task | - |
| type | varchar | Task type | - |
| sender | varchar | Task sender | - |
| status | int4 | Task status | - |
| running_progress | numeric | Current progress of the task | - |
| updated | timestamptz | Date and time of the last task update | - |
| extra_info | varchar | Additional information about the task | - |
| creator_id | uuid | ID of the user who created the task | DB – auth_app_caruser, column – id |
content_app_fragmentsgroup#
Table 22. Description of table content_app_fragmentsgroup
| Field | Type | Description | Relations |
|---|---|---|---|
| id | uuid | ID of the full frame group | DB – content_app_event_groups, column – fragmentsgroup_id |
| DB – content_app_incident_groups, column – fragmentsgroup_id | |||
| created | timestamptz | Date and time the event was created | - |
| object_type | varchar | Type of object | - |
content_app_incident_groups#
This is an intermediate table. It references the tables content_app_incident (column id) and content_app_fragmentsgroup (column id), establishing a link between incidents and data fragments.
This is a many-to-many relationship, which means that one record in a table can be linked to several records, and similarly, one record in another table can be linked to multiple records in the first table.
content_app_incident#
Table 23. Description of table content_app_incident
| Field | Type | Description | Relations |
|---|---|---|---|
| id | uuid | Incident ID | - |
| timestamp | timestamptz | Date and time of the incident creation | - |
| track_id | varchar | Track ID | - |
| frame_id | varchar | Frame ID for the incident | - |
| object_type | varchar | Type of the incident | - |
| detections | jsonb | Information about object detection | - |
| comment | text | Comment for the incident | - |
| bestshot | varchar | Best shot ID | - |
| car_model_score | numeric | Vehicle model score quality | - |
| car_brand_score | numeric | Vehicle brand score quality | - |
| vehicle_type_score | numeric | Vehicle type score quality | - |
| vehicle_type_emergency_score | numeric | Emergency vehicle type score quality | - |
| vehicle_descriptor | text | Vehicle descriptor | - |
| is_unread | bool | Incident status: new or viewed | - |
| camera_id | uuid | Camera ID | DB – content_app_camera, column – id |
| car_model_id | uuid | Vehicle model ID | DB – content_app_carmodel, column – id |
| scenario_id | uuid | Scenario ID | DB – scenario_manager_scenario, column – id |
| vehicle_emergency_type_id | uuid | Emergency vehicle type ID | DB – content_app_vehicleemergencytype, column – id |
| vehicle_type_id | uuid | Vehicle type ID | DB – content_app_vehicletype, column – id |
| service_data | jsonb | Service data for the incident | - |
| stream_id | uuid | Stream identifier | - |
| stream_track_id | int4 | Track identifier in the stream | - |
| public_transport_type_id | uuid | Public transport type ID | DB - content_app_publictransporttype, column - id |
| public_transport_type_score | numeric | Public transport type score quality | - |
| special_transport_type_id | uuid | Special transport type identifier | DB - content_app_specialtransporttype, column – id |
| special_transport_type_score | numeric | Special transport type score quality | - |
| vehicle_axles_amount | int4 | Number of vehicle axles | - |
| vehicle_axles_amount_score | numeric | Axle count score quality | - |
| patched_with_track_end | boolean | Flag indicating whether the track end event for this incident was received from CARS_Stream | - |
| quantity | int4 | Number of vehicles | - |
| direction | varchar | Vehicle direction | - |
| exit_timestamp | timestamptz | Time when the vehicle exited | - |
| atomic_id | int8 | uuid | - |
| color_type_score | numeric | Vehicle color score quality | - |
| color_type_id | uuid | Vehicle color type ID | - |
| vehicle_emergency_has_flashing_light | bool | Indicates whether the vehicle has flashing lights | – |
| vehicle_emergency_has_flashing_light_score | numeric | Flashing light score quality | - |
| vehicle_orientation | varchar | Vehicle orientation | - |
| vehicle_orientation_score | numeric | Vehicle orientation score quality | - |
| count_diff | int4 | Vehicle counter | - |
content_app_event_colors#
This is an intermediate table. It references the tables content_app_event (column id) and content_app_vehiclecolorestimation (column id), establishing a link between events and vehicle color estimations.
This is a many-to-many relationship, which means that one record in a table can be linked to several records, and similarly, one record in another table can be linked to multiple records in the first table.
djando_admin_log#
Table 24. Description of table djando_admin_log
| Field | Type | Description | Relations |
|---|---|---|---|
| id | int4 | Log record ID | - |
| action_tim | timestamptz | Time of the action performed | - |
| object_id | text | ID of the object the action was performed on | - |
| object_repr | varchar | Object name the action was performed on | - |
| action_flag | int2 | Flag indicating what action was performed | - |
| change_me | text | Text description of the changes made to the object | - |
| content_ty | int4 | Content type ID | - |
| user_id | uuid | User ID who performed the action | DB – auth_app_caruser, column – id |
content_app_platelistitem_vehicle_types#
This is an intermediate table. It references the tables content_app_platelistitem (column id) and content_app_vehicletype (column id), establishing a link between list items and vehicle types.
This is a many-to-many relationship, which means that one record in a table can be linked to several records, and similarly, one record in another table can be linked to multiple records in the first table.
content_app_platelistitem_car_brands#
This is an intermediate table. It references the tables content_app_platelistitem (column id) and content_app_carbrand (column id), establishing a link between list items and vehicle brands.
This is a many-to-many relationship, which means that one record in a table can be linked to several records, and similarly, one record in another table can be linked to multiple records in the first table.
content_app_publictransporttype#
Table 25. Description of table content_app_publictransporttype
| Field | Type | Description | Relations |
|---|---|---|---|
| id | uuid | Public transport type ID | DB - content_app_event, column - public_transport_type_id |
| DB - content_app_incident, column - public_transport_type_id | |||
| DB – content_app_platelistitem, column – list_id | |||
| title | varchar | Public transport name | - |
| code | varchar | Public transport code | - |
content_app_licenseplate_features#
This is an intermediate table. It references the tables content_app_licenseplate (column id) and content_app_licenseplatefeature (column id), establishing a link between license plates and their features.
This is a many-to-many relationship, which means that one record in a table can be linked to several records, and similarly, one record in another table can be linked to multiple records in the first table.
activity_log_app_activitylog#
Table 26. Description of table activity_log_app_activitylog
| Field | Type | Description | Relations |
|---|---|---|---|
| id | int8 | Log record ID | - |
| action | varchar | Action type | - |
| timestamp | timestamptz | Date and time when the action was performed | - |
| status | varchar | Status of the action | - |
| data | jsonb | Modified data | - |
| target_id | uuid | ID of the object the action was performed on | - |
| target_title | varchar | Title of the object the action was performed on | - |
| content_type_id | int4 | Type of the object | - |
| user_id | uuid | ID of the user who performed the action | DB – auth_app_caruser, column – id |
content_app_fragmentsitem#
Table 27. Description of table content_app_fragmentsitem
| Field | Type | Description | Relations |
|---|---|---|---|
| id | uuid | Full frame ID | - |
| timestamp | timestamptz | Date and time when the incident record was created | - |
| object_type | varchar | Type of the object detected in the fragment | - |
| file_name | varchar | Name of the saved frame | - |
| detections | jsonb | Detection data | - |
| group_id | uuid | ID of the fragment group this fragment belongs to | DB – content_app_fragmentsgroup, column – id |
| frame_id | int4 | ID of the frame this fragment belongs to | - |
scenario_manager_scenario#
Table 28. Description of table scenario_manager_scenario
| Field | Type | Description | Relations |
|---|---|---|---|
| id | uuid | Scenario ID | - |
| dt_created | timestamptz | Date and time when the scenario was created | - |
| title | varchar | Scenario title | - |
| scenario_type | varchar | Scenario type | - |
| is_enable | bool | Status of the scenario | - |
| indicator_type_id | uuid | ID of the scenario type | DB – scenario_manager_indicatortype, column – id |
| back_cam_position | varchar | Position of the back camera | - |
content_app_incident_license_plates#
This is an intermediate table. It references the tables content_app_incident (column id) and content_app_licenseplatefeature (column id), establishing a link between incidents and license plate features.
This is a many-to-many relationship, which means that one record in a table can be linked to several records, and similarly, one record in another table can be linked to multiple records in the first table.
content_app_vehicleemergencytype#
Table 29. Description of table content_app_vehicleemergencytype
| Field | Type | Description | Relations |
|---|---|---|---|
| id | uuid | Emergency service ID | DB – content_app_event, column – vehicle_emergency_type_id |
| DB – content_app_incident, column – vehicle_emergency_type_id | |||
| title | varchar | Name of the emergency service | - |
| code | varchar | Code of the emergency service | - |
content_app_event#
Table 30. Description of table content_app_event
| Field | Type | Description | Relations |
|---|---|---|---|
| id | uuid | Event ID | - |
| timestamp | timestamptz | Date and time of the event creation | - |
| track_id | varchar | Track ID | - |
| frame_id | varchar | Frame ID for the event | - |
| object_type | varchar | Type of the event | - |
| detections | jsonb | Object detection information | - |
| comment | text | Event comment | - |
| bestshot | varchar | Best shot ID | - |
| car_model_score | numeric | Vehicle model score quality | - |
| car_brand_score | numeric | Vehicle brand score quality | - |
| vehicle_type_score | numeric | Vehicle type score quality | - |
| vehicle_type_emergency_score | numeric | Emergency vehicle type score quality | - |
| vehicle_descriptor | text | Vehicle descriptor | - |
| camera_id | uuid | Camera ID | DB – content_app_camera, column – id |
| car_model_id | uuid | Vehicle model ID | DB – content_app_carmodel, column – id |
| scenario_id | uuid | Scenario ID | DB – scenario_manager_scenario, column – id |
| vehicle_emergency_type_id | uuid | Emergency vehicle type ID | DB – content_app_vehicleemergencytype, column – id |
| vehicle_type_id | uuid | Vehicle type ID | DB – content_app_vehicletype, column – id |
| service_data | jsonb | Service data for the event | - |
| stream_id | uuid | Stream identifier | - |
| stream_track_id | int4 | Track identifier in the stream | - |
| public_transport_type_id | uuid | Public transport type ID | DB - content_app_publictransporttype, column - id |
| public_transport_type_score | numeric | Public transport type score quality | - |
| special_transport_type_id | uuid | Special transport type identifier | DB - content_app_specialtransporttype, column – id |
| special_transport_type_score | numeric | Special transport type score quality | - |
| vehicle_axles_amount | int4 | Number of vehicle axles | - |
| vehicle_axles_amount_score | numeric | Axle count score quality | - |
| patched_with_track_end | boolean | Flag indicating whether the track end event was received from CARS_Stream | - |
| quantity | int4 | Number of vehicles | - |
| direction | varchar | Vehicle direction | - |
| exit_timestamp | timestamptz | Time when the vehicle exited | - |
| atomic_id | int8 | uuid | - |
| color_type_score | numeric | Vehicle color score quality | - |
| color_type_id | uuid | Vehicle color type ID | - |
| vehicle_emergency_has_flashing_light | bool | Indicates whether the vehicle has flashing lights | – |
| vehicle_emergency_has_flashing_light_score | numeric | Flashing light score quality | - |
| vehicle_orientation | varchar | Vehicle orientation | - |
| vehicle_orientation_score | numeric | Vehicle orientation score quality | - |
| count_diff | int4 | Vehicle counter | - |
content_app_platelistitem_countries#
This is an intermediate table. It references the tables content_app_platelistitem (column id) and content_app_licenseplatecountry (column id), establishing a link between license plates and the countries where they are registered.
This is a many-to-many relationship, which means that one record in a table can be linked to several records, and similarly, one record in another table can be linked to multiple records in the first table.
djando_session#
Table 31. Description of table djando_session
| Field | Type | Description |
|---|---|---|
| session_key | varchar | Unique session key used to identify the user's session in the system |
| session_data | text | Session data, including information about the user's current state in the system |
| expire_data | timestamptz | Date and time when the session expires |
content_app_vehiclecolortype#
Table 32. Description of table content_app_vehiclecolortype
| Field | Type | Description | Relations |
|---|---|---|---|
| id | uuid | Vehicle color type ID | DB – content_app_event, column – color_type_id |
| DB – content_app_incident, column – color_type_id | |||
| title | varchar | Name of the color type | - |
| code | varchar | Color type code | - |
content_app_event_avg_speed#
Table 33. Description of table content_app_event_avg_speed
| Field | Type | Description | Relations |
|---|---|---|---|
| id | uuid | Event ID for speed calculation | - |
| created | timestamptz | Date and time of event creation | - |
| group | uuid | Group ID in which the event was created | DB – content_app_event_groups, column – id |
| speed | int4 | Speed value of the vehicle | - |
| distance_to_previous | numeric | Distance between the start and end points | - |
| handler_id | uuid | Handler ID used for speed calculation | DB – scenario_manager_handler, column – id |
| record_id | uuid | Record ID to which the event belongs | DB – content_app_event, column – id |
scenario_manager_scenariogroup_scenarios#
This is an intermediate table. It references the tables scenario_manager_scenariogroup (column id) and scenario_manager_scenario (column id), establishing a link between scenario groups and specific scenarios.
This is a many-to-many relationship, which means that one record in a table can be linked to several records, and similarly, one record in another table can be linked to multiple records in the first table.
content_app_incident_avg_speed#
Table 34. Description of table content_app_incident_avg_speed
| Field | Type | Description | Relations |
|---|---|---|---|
| id | uuid | Incident ID for speed calculation | - |
| created | timestamptz | Date and time of incident creation | - |
| group | uuid | Group ID in which the incident was created | - |
| speed | int4 | Speed value of the vehicle | - |
| distance_to_previous | numeric | Distance between the start and end points | - |
| handler_id | uuid | Handler ID used for speed calculation | DB – scenario_manager_handler, column – id |
| record_id | uuid | Record ID to which the incident belongs | DB – content_app_incident, column – id |
content_app_licenseplatecountry#
Table 35. Description of table content_app_licenseplatecountry
| Field | Type | Description |
|---|---|---|
| id | uuid | Country ID for the license plate |
| titile | varchar | Country name |
| code | varchar | Country code |
auth_permission#
Table 36. Description of table auth_permission
| Field | Type | Description |
|---|---|---|
| id | int4 | Permission ID |
| name | varchar | Permission name |
| content_t | int4 | Content type ID associated with the permission |
| codename | varchar | Codename for the permission, used in the system for easier reference |
scenario_manager_scenariolistextra#
Table 37. Description of table scenario_manager_scenariolistextra
| Field | Type | Description | Relations |
|---|---|---|---|
| id | uuid | ID for the record | – |
| dt_created | timestamptz | Date and time when the list was created | - |
| is_except | varchar | Indicates whether the list belongs to a scenario | - |
| list_id | uuid | List ID | DB – content_app_list, column – id |
| scenario_id | uuid | Scenario ID | DB – scenario_manager_scenario, column – id |
content_app_cameraregion#
Table 38. Description of table camera_app_cameraregion
| Field | Type | Description |
|---|---|---|
| id | uuid | Recognition zone ID |
| tag_name | varchar | Name of the recognition zone |
content_app_platelistitem#
Table 39. Description of table content_app_platelistitem
| Field | Type | Description |
|---|---|---|
| id | uuid | License plate ID |
| created | timestamptz | Time of the vehicle detection event |
| car_grz | varchar | License plate symbols |
| image_item | varchar | Image of the license plate |
| image_accuracy | float8 | Accuracy score for license plate recognition |
| image_descriptor | text | License plate descriptor |
| extra_data | jsonb | Field for additional information |
| list_id | uuid | List ID |
| vehicle_emergency_has_flashing_light | bool | НPresence of flashing lights |
content_app_cameravector#
Table 40. Description of table content_app_cameravector
| Field | Type | Description | Relations |
|---|---|---|---|
| id | uuid | Vehicle vector ID | - |
| name | varchar | Vector name | - |
| max_angle_d | int4 | Maximum angle of the vector in degrees | - |
| points | jsonb | Array of points defining the vector coordinates | - |
| camera_id | uuid | Camera ID associated with the vector | DB – content_app_camera, column – id |
| display_color | varchar | Color used for displaying the vector in the interface | - |
content_app_licenseplate#
This is an intermediate table. It references the tables content_app_incident (column id) and content_app_licenseplatefeature (column id), establishing a link between incidents and license plate features.
This is a many-to-many relationship, which means that one record in a table can be linked to several records, and similarly, one record in another table can be linked to multiple records in the first table.
