Getting data via WebSocket protocol#

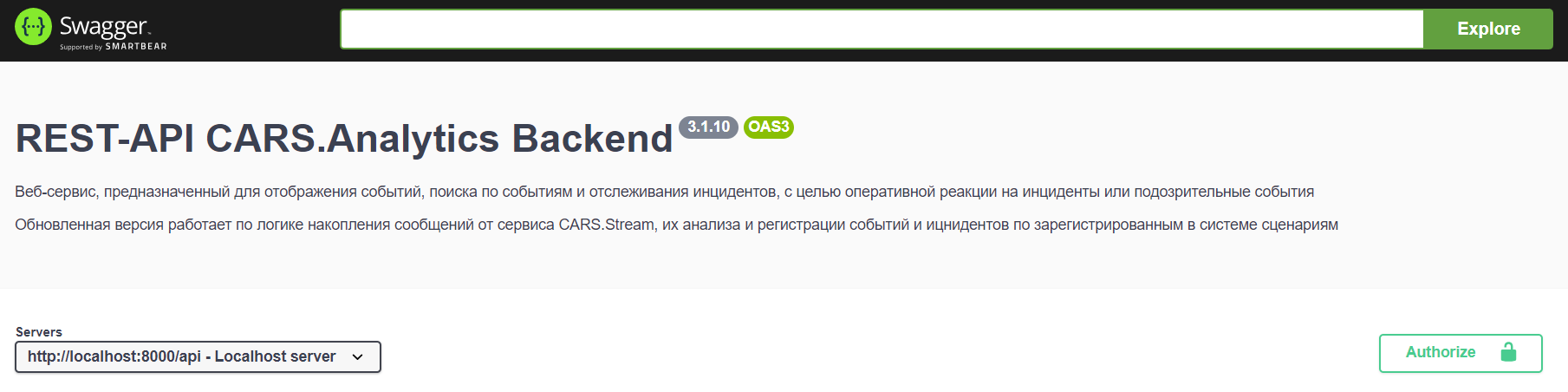

To obtain information about events and incidents using the web socket protocol, you can use the tool built into LUNA CARS_Analytics — Swagger REST-API CARS_Analytics.

The web interface with the available REST API methods is located at the link below.

http://IP_ADDRESS:ANALYTICS_FRONTEND_PORT/api/v1-cars/doc#/

IP_ADDRESS — IP address of the target server where the LUNA CARS product is installed;
ANALYTICS_FRONTEND_PORT — port for connecting to the frontend component of CARS_Analytics (default value is 8080, for more details see the LUNA CARS Installation Manual documentation, Appendix 2. Description of «.env» variables).

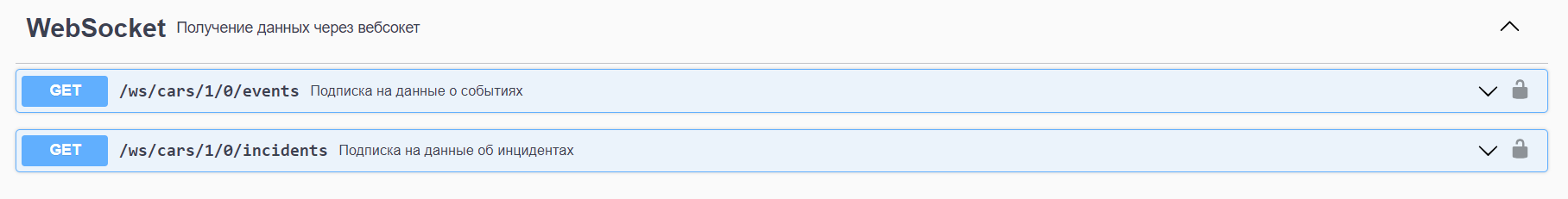

In the WebSocket section there are two sections available for receiving data using GET requests (Figure 6)

/ws/cars/1/0/events — getting scenarios data with the Event type;
/ws/cars/1/0/incidents — getting scenarios data with the Incident type;
