«Lists» Section#

The «Lists» section displays the lists added by the administrator, which will generate events or incidents when added to a Scenario.

Each created list acts as a "filter" for generating events and incidents. The Administrator can create a list and add entries to it. In each list entry, the Administrator specifies vehicle and/or VRP attributes. A list can be linked to a scenario (for more information, see section Scenarios), in which case all recognized objects within this scenario will be compared to the records in the linked list. When the vehicle and VRP attributes match those in the list entry, an event or incident will be created.

Lists can also be used as filters on the «Events» and «Incidents» pages. When filtering by list, only events or incidents with vehicles whose attributes match those in the list will be displayed in the table.

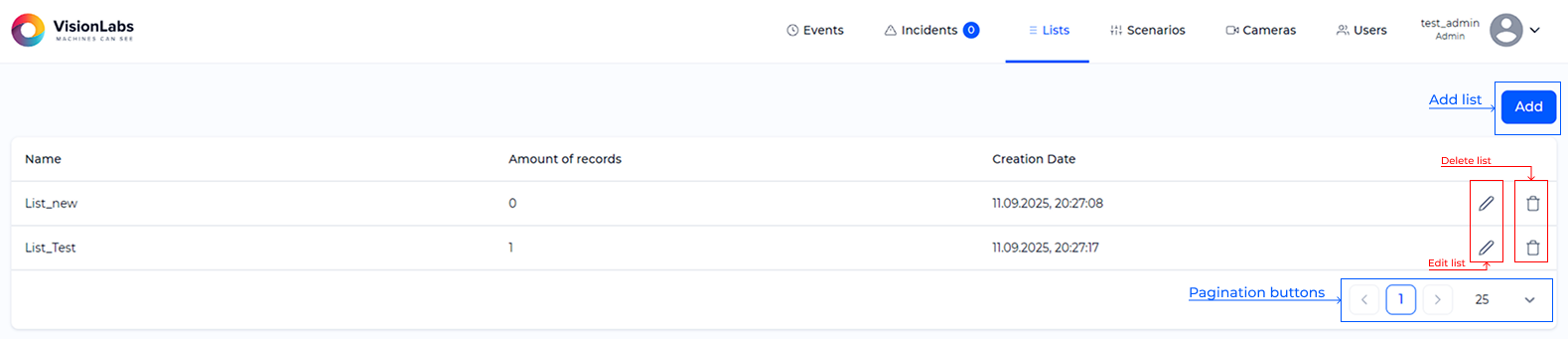

The general view of the «Lists» section (Figure 32).

Only the Administrator can create, fill, edit and delete lists.

Creating and Editing «Lists»#

To create a list, click the «Add» button in the top right corner of the page.

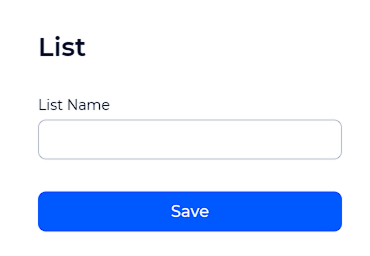

A window will appear to input the list name (Figure 33).

Enter the list name and click «Save». To cancel list creation, press [Esc] on the keyboard or click outside the form with the left mouse button.

To edit the list name, click on .

To edit the list, click on the row with the desired list.

The general view of the list editing page (Figure 34).

Figure 34. List settings and editting page

Creating a List Entry#

To create list entries, click on the row with the list name, which will open the list settings and editing page.

The page has two blocks:

Filters;
List entries table.

Using filters, the user can quickly find a list entry. By default, filters are disabled, and all previously added entries are displayed in the list entry table.

Filtering is possible by one or more parameters.

All filters except LP support multiple selection. To cancel the filter selection, click on . To cancel all filters, click the «Reset» button.

All filters except LP are presented in the form of dropdown lists. These filters support keyboard input to search for names in the list. The number of objects in the list will change dynamically as you enter symbols.

To apply filters, click the «Filter» button.

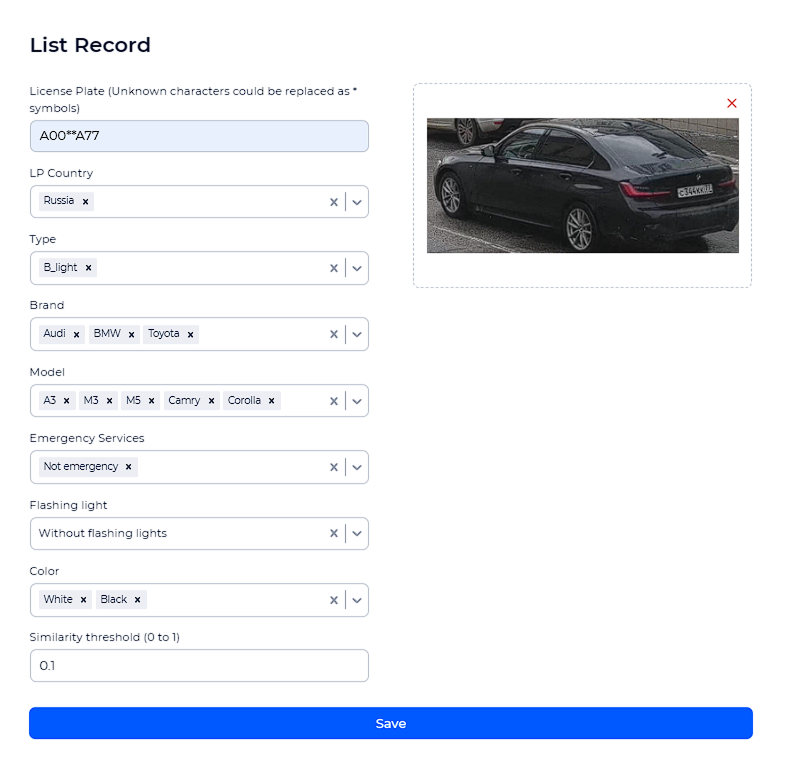

To add a new list entry, click the «Add» button. A form window for list entry settings will appear (Figure 35). The description of each field is provided in Table 10.

Table 10. Description of list record parameters

Name	Description	Possible values
License Plate	Field to enter LP symbols. Unknown symbols should be replaced with ``. Examples of LP: A001AA777, A***A777, A000177, etc. When entering a different number of symbols, an error appears informing about the wrong number of symbols and this filter will not be used for filtering.	Numbers 0…9, Capital letters A…Z
LP Country	Dropdown list containing countries of vehicle registration	Countries available in the dropdown list
Vehicle Types	Dropdown list with vehicle types	- А_light,
		- А_heavy,
		- В_light,
		- B_heavy,
		- С_light,
		- С_heavy,
		- D_light,
		- D_heavy,
		- D_long,
		- E_light,
		- E_heavy,
		- P_light,
		- P_heavy,
		- Other,
		- Undefined
		Detailed description of each vehicle type can be found in the «LUNA CARS_API. Administration manual»
Brands	Dropdown list with vehicle brands. Around 100 makes available	Brand available in the dropdown list
Models	Dropdown list with vehicle models. Around 800 models available	Models available in the dropdown list
Emergency services	Dropdown list with emergency services types	- Emergency – emergency service vehicles;
		- EMERCOM – rescue service vehicles;
		- Not Defined – emergency service not defined;
		- Non-emergency – vehicles not belonging to emergency services (civilian, military, etc.);
		- Fire – fire service vehicles;
		- Police – police and traffic police vehicles;
		- Other Services – vehicles of other emergency services;
		- Ambulance – ambulance vehicles
Flashing Lights	Dropdown list with the presence of flashing lights	- With flashing lights;
		- Without flashing lights
Colors	Dropdown list with vehicle colors	- beige,
		- white,
		- light_blue,
		- yellow,
		- green,
		- brown,
		- red,
		- orange,
		- purple or pink,
		- grey or silver,
		- blue,
		- black,
		- not defined
Vehicle Image	Field for adding the vehicle image. An image is required for extracting the vehicle descriptor for subsequent comparison. To add an image, drag the image into the area or click the area to choose a file from the file explorer. To reset the image, click	Vehicle image. Requirements for images are described in section Events
Vehicle Similarity Threshold	Appears only when adding a photo. Field to set the similarity threshold. Vehicles are considered matching if the similarity value is equal to or higher than the specified one. The accuracy value is entered in the range from 0 to 1. If values below 0 or above 1 are entered, an error will appear. Also, if more than three decimal places are entered, a warning will appear showing the two closest acceptable values	0.000…1.000

To create an entry, at least one attribute must be specified, or a photo must be uploaded.

The criterion for creating an event or incident when linking the list to a scenario is that all the attributes specified in the entry must match the vehicle and VRP attributes in the frame captured by the camera or from the video file.

To save the list entry, click «Save». To cancel the changes, press [Esc] on the keyboard or click outside the window with the left mouse button.

Editing a List Entry#

To edit a list entry, click on in the entry row.

Deleting a List Entry#

To delete a list entry, click the ibutton in the entry row (Figure 36). After clicking, a confirmation prompt will appear, where you can either confirm the operation by clicking the «Delete» button or cancel the action by clicking «Cancel».

Figure 36. Delete list entry confirmation

Deleting a List#

To delete a list, click the button in the list row. After clicking, a confirmation prompt will appear (Figure 37), where you can either confirm the operation by clicking the «Delete» button or cancel the action by clicking «Cancel».
