«Lists» Section#

The «Lists» section displays the lists added by the administrator, which will generate events or incidents when added to a Scenario.

Each created list acts as a "filter" for generating events and incidents. The Administrator can create a list and add entries to it. In each list entry, the Administrator specifies vehicle and/or VRP attributes. A list can be linked to a scenario (for more information, see section Scenarios), in which case all recognized objects within this scenario will be compared to the records in the linked list. When the vehicle and VRP attributes match those in the list entry, an event or incident will be created.

Lists can also be used as filters on the «Events» and «Incidents» pages. When filtering by list, only events or incidents with vehicles whose attributes match those in the list will be displayed in the table.

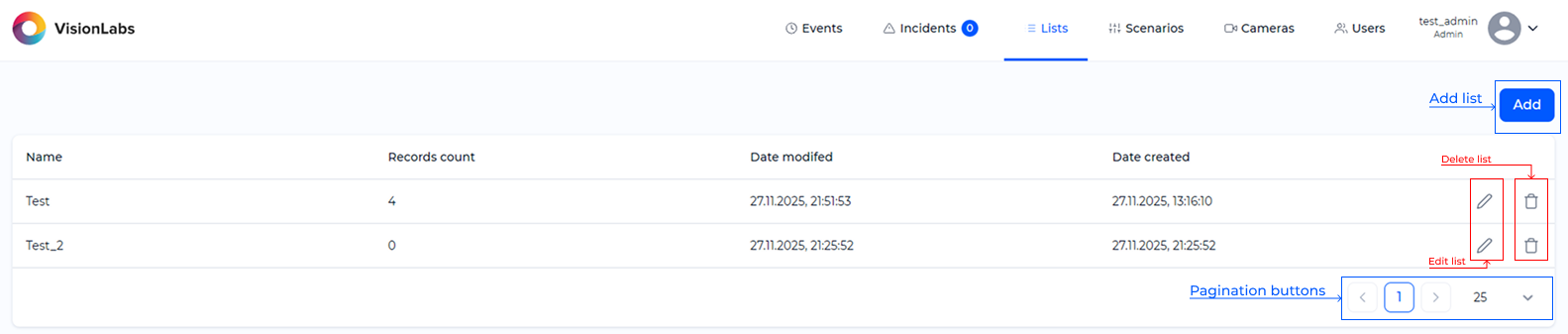

The general view of the «Lists» section (Figure 34).

Only the Administrator can create, fill, edit and delete lists.

Creating and Editing «Lists»#

To create a list, click the «Add» button in the top right corner of the page.

A window will appear to input the list name (Figure 35).

Enter the list name and click «Save». To cancel list creation, press [Esc] on the keyboard or click outside the form with the left mouse button.

To configure the list, click on the row with the desired list.

To edit the list name, go to the list configuration mode and click on next to the list name in the top left corner.

Creating a List Entry#

To create list entries, click on the row with the list name using the left mouse button. This will open the list configuration page.

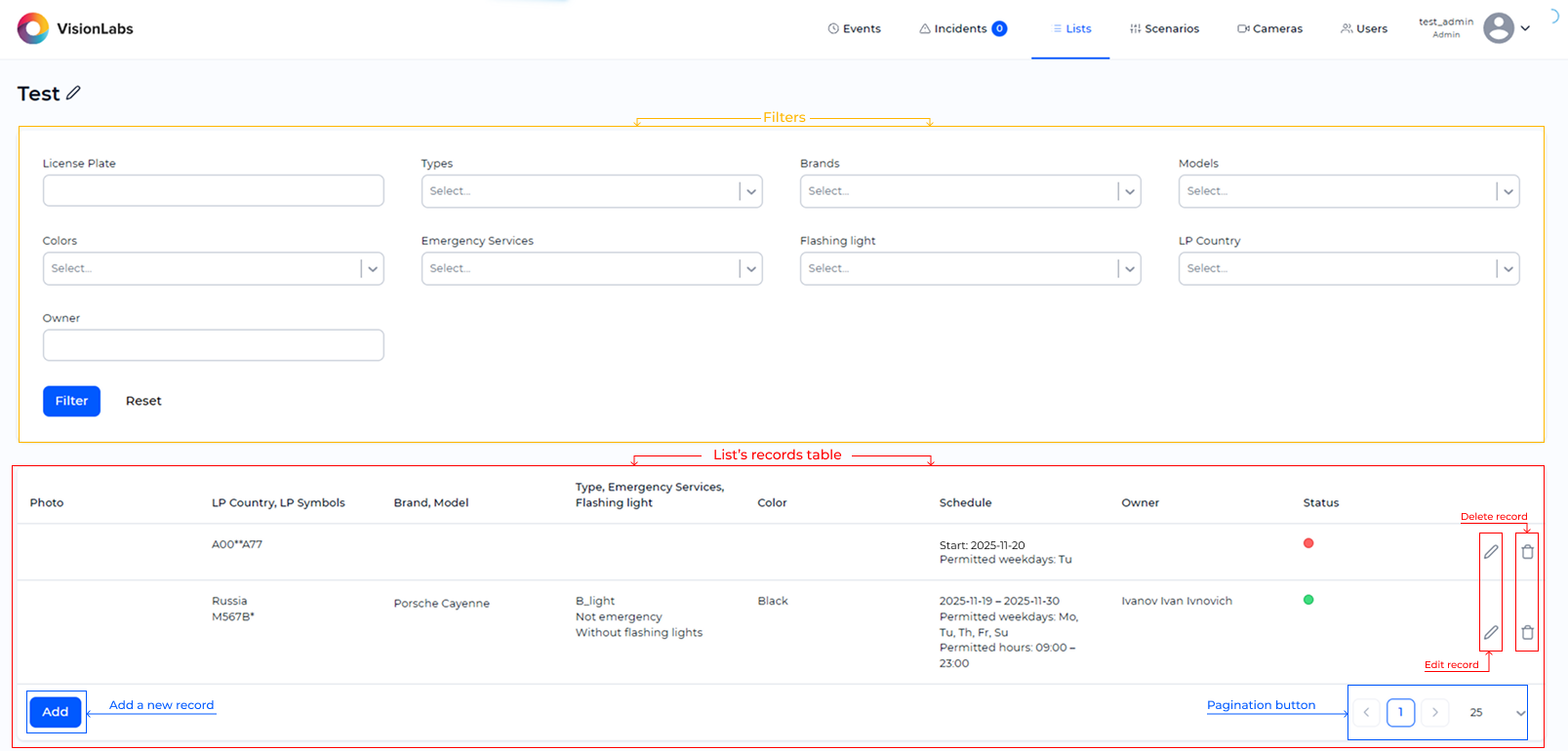

The general view of the list editing page (Figure 36).

Figure 36. List settings and editting page

The page has two blocks:

Filters;
List entries table.

Using filters, the user can quickly find a list entry. By default, filters are disabled, and all previously added entries are displayed in the list entry table.

Filtering is possible by one or more parameters.

All filters except LP and Owner support multiple selection. To cancel the filter selection, click on . To cancel all filters, click the «Reset» button.

All filters except LP and Owner are presented in the form of dropdown lists. These filters support keyboard input to search for names in the list. The number of objects in the list will change dynamically as you enter symbols.

To apply filters, click the «Filter» button.

To add a new list entry, click the «Add» button. A form window for list entry settings will appear (Figure 37). The description of each field is provided in Table 10.

Table 10. Description of list record parameters

Name	Description	Possible values
License Plate Number (LP)	Input field for license plate number. Unknown characters should be replaced with ``. Examples of license plates: A001AX163, A**A777, M08IH, etc. The input field can contain uppercase letters, numbers, and symbols. Otherwise, the license plate will not be considered during filtering.	Numbers 0…9
		Uppercase letters A…Z
LP Country	Dropdown list containing countries of vehicle registration	Countries available in the dropdown list
Vehicle Types	Dropdown list with vehicle types	- А_light,
		- А_heavy;
		- В_light;
		- B_heavy;
		- С_light;
		- С_heavy;
		- C_artic;
		- D_light;
		- D_heavy;
		- D_long;
		- P;
		- O;
		- Undefined
		Detailed description of each vehicle type can be found in the «LUNA CARS_API. Administration manual»
Brands	Dropdown list with vehicle brands. Around 100 makes available	Brand available in the dropdown list
Models	Dropdown list with vehicle models. Around 800 models available	Models available in the dropdown list
Emergency services	Dropdown list with emergency services types	- Emergency – emergency service vehicles;
		- EMERCOM – rescue service vehicles;
		- Not Defined – emergency service not defined;
		- Non-emergency – vehicles not belonging to emergency services (civilian, military, etc.);
		- Fire – fire service vehicles;
		- Police – police and traffic police vehicles;
		- Other Services – vehicles of other emergency services;
		- Ambulance – ambulance vehicles
Flashing Lights	Dropdown list with the presence of flashing lights	- With flashing lights;
		- Without flashing lights
Colors	Dropdown list with vehicle colors	- beige,
		- white,
		- light_blue,
		- yellow,
		- green,
		- brown,
		- red,
		- orange,
		- purple or pink,
		- grey or silver,
		- blue,
		- black,
		- not defined
Owner	Input field for the pass owner's full name. The field can contain letters in both uppercase and lowercase	Letters A…Z
Schedule	Fields to fill in pass properties	-
Period start	Specifies the start date of the pass validity. Set using the built-in calendar	DD.MM.YYYY
Period end	Specifies the expiration date of the pass. Set using the built-in calendar	DD.MM.YYYY
Time permitted from	Specifies the exact time when the pass becomes valid.	HH.MM
Time permitted from till	Specifies the exact time until which the pass is valid	HH.MM
Permitted weekdays	Specifies the days of the week when the pass is valid.	All days of the week, multiple days can be selected
Vehicle Image	Field for adding the vehicle image. An image is required for extracting the vehicle descriptor for subsequent comparison. To add an image, drag the image into the area or click the area to choose a file from the file explorer. To reset the image, click	Vehicle image. Requirements for images are described in section Events
Vehicle Similarity Threshold	Appears only when adding a photo. Field to set the similarity threshold. Vehicles are considered matching if the similarity value is equal to or higher than the specified one. The accuracy value is entered in the range from 0 to 1. If values below 0 or above 1 are entered, an error will appear. Also, if more than three decimal places are entered, a warning will appear showing the two closest acceptable values	0.000…1.000

To create a standard list entry:

You must specify at least one attribute (excluding the «Schedule» field) or upload a photo (Figure 38).

Note: If, when creating a standard list entry, you start filling in fields related to the schedule, the system will interpret this as creating a pass. In this case, the entry's status will turn red, and it will be considered a pass rather than a standard entry.

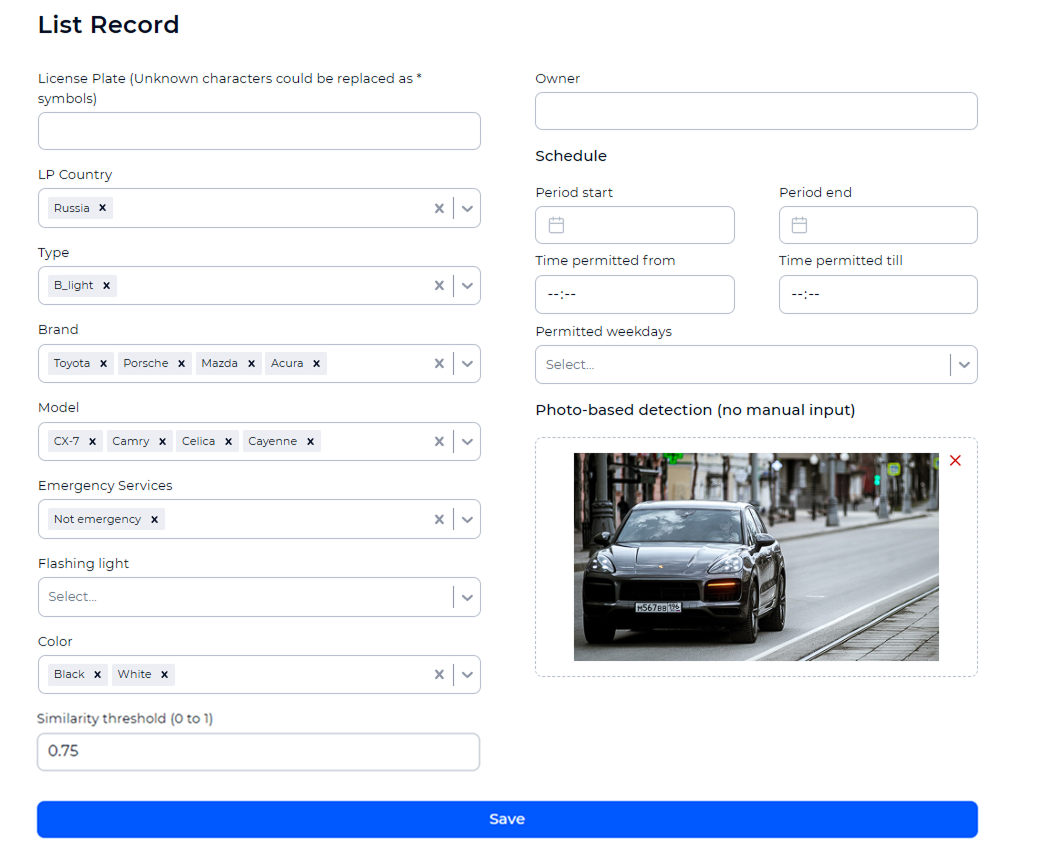

Figure 38. Example of filling out a standard list entry

To create a «Pass» list entry:

1․ The process of filling out a list entry for a pass is the same as for a standard entry, with the difference that for a pass, the required attributes must be specified (Figure 39). If any of these attributes are not filled in or filled out incorrectly, the entry's status will be shown in red.

2․ Filling in the «License Plate Number field is mandatory for the pass functionality if the fields «Period», «Time», or «Permitted weekdays» are specified. If all the required data for the pass entry is not provided, the entry's status will turn red.

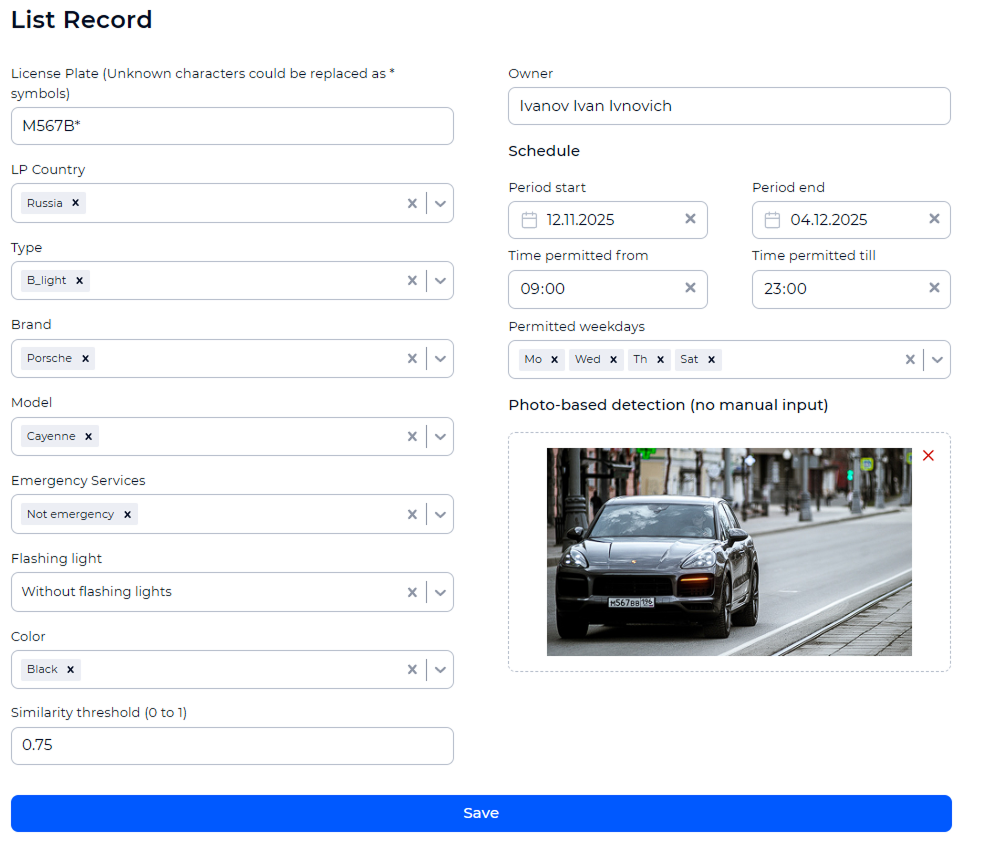

Figure 39. Example of filling out a «Pass» list entry

Attention:

The criterion for creating an event or incident when linking a record to a scenario is the matching of all the record's attributes with the attributes of the vehicle and its LP in the frame received from the camera or video file.
If the status for the list in the scenario is set to "except", this entry will not be created, regardless of the data provided.

After filling in the attributes and creating the entry, to save the changes, click the «Save» button. If you wish to cancel the changes, press the [Esc] key on your keyboard or click the left mouse button in the area around the window.

Table 11. List entry statuses

Status	Description
	The list entry is filled out and active
	The list entry is filled out incorrectly and inactive

Editing a List Entry#

To edit a list entry, click on in the entry row.

Deleting a List Entry#

To delete a list entry, click the ibutton in the entry row (Figure 40). After clicking, a confirmation prompt will appear, where you can either confirm the operation by clicking the «Delete» button or cancel the action by clicking «Cancel».

Figure 40. Delete list entry confirmation

Deleting a List#

To delete a list, click the button in the list row. After clicking, a confirmation prompt will appear (Figure 41), where you can either confirm the operation by clicking the «Delete» button or cancel the action by clicking «Cancel».
