“Events archive” section#
In Clementine 2.0. version
2.12.0-rolemodel-alphafunctionality of the Notifier add-on is not supported.
The “Events archive” section is designed to display all events of face and body detection as well as recognition and search for events in archive.
Receiving and displaying new events in the event archive is performed with minimal delays in near real-time.

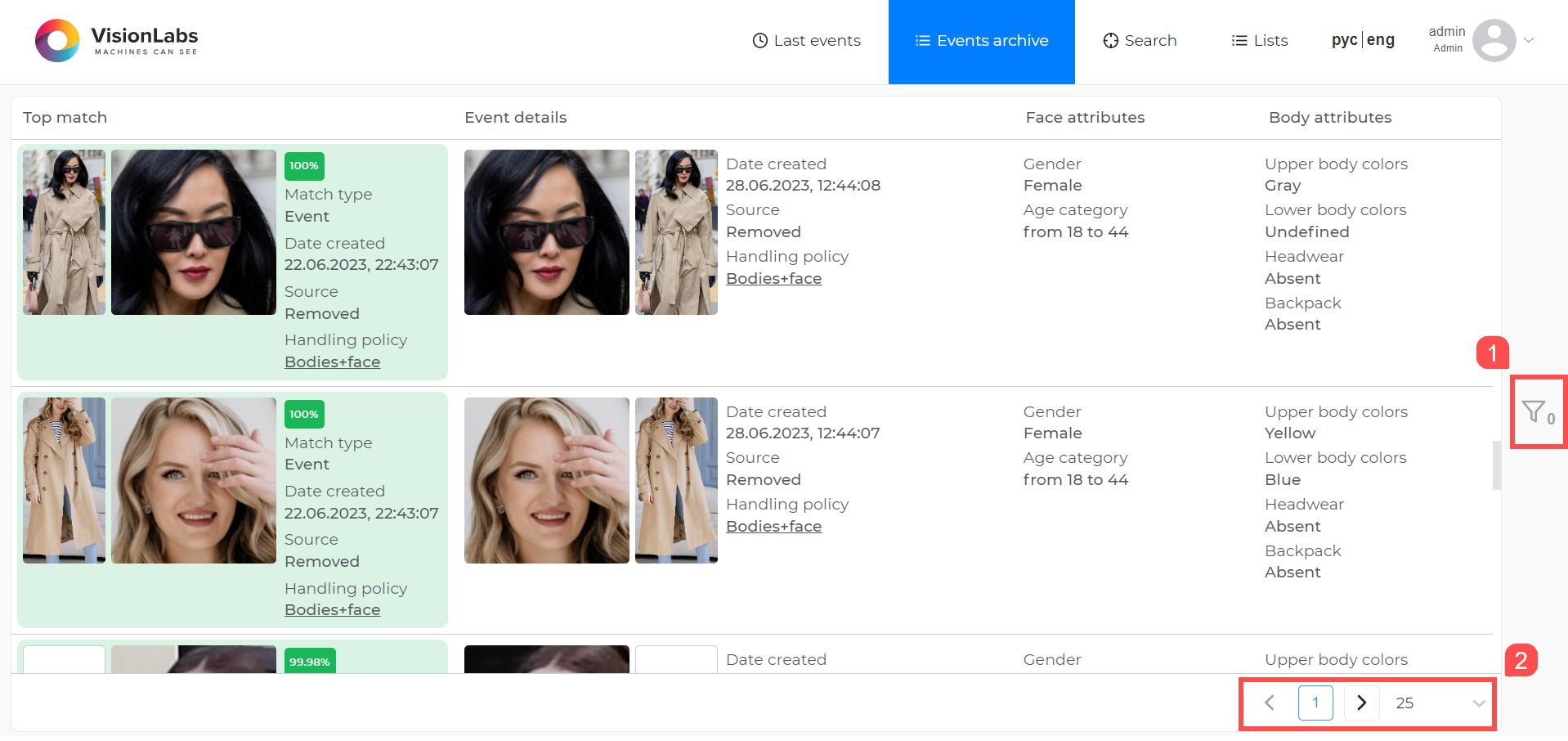

General view of the “Events archive” section is shown in Figure 15.
If there are no filters applied (1), the Service displays the latest detection and identification events identical to those presented in the “Last events” section, as well as events created earlier.
The number of events displayed on the page is set by the switch in the lower right corner of the page. There can be 10, 25, 50 or 100 events in total on one page (2).
The displayed data is identical to the data in the “Last events” section (see par. 7).
If no filters are set, only events from the last 30 days are displayed.
Clicking on a line opens an event card (see par. 7.2).
Clicking on a reference photo of a face from the control list opens a face card (see par. 7.3).
Archived events filtering#
The Service allows you to filter archived events (Figure 15, (1)) to find and display necessary events.

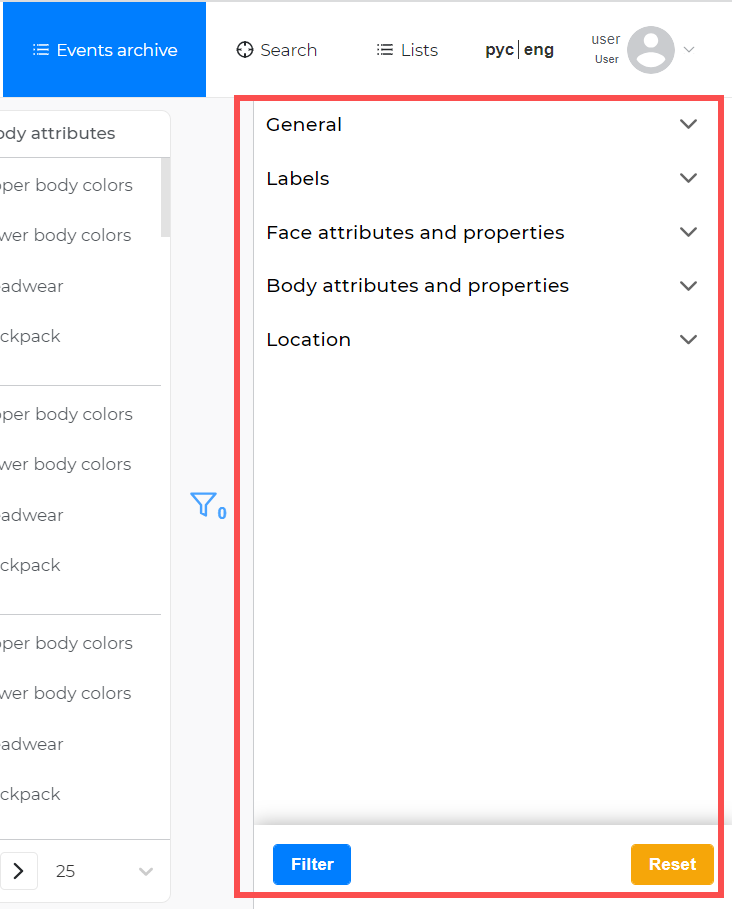

With filters (Figure 16) user can quickly find an event among the last, as well as set a limit for displaying new events on the screen.
A short description of the elements and parameters of the block with filters in the "Events archive" section is presented in the table (Table 5).
Table 5. Filters available to the user to search for archived events:
| Name | Description |
|---|---|
| General | |
| Date from | Start of the search period by date and time of the event; |
| Date to | End of the search period by date and time of the event; |
| Source | Event source that recorded the event. |
| Select one or more sources from the list of available ones; | |
| Handling policies | Handling policy names, according to which the face or body in the image was processed. One or several handling policies can be selected for searching. |
| Liveness | Liveness status selection: |
| - Spoof; | |
| - Real; | |
| - Unknown. | |
| Tags | Selection of one or more tags. |
| For example, the "Temperature" tag, is intended for displaying information about the temperature of the human body, filtering events by temperature. "Temperature": | |
| Abnormal—very low or very high body temperature of a person, which may indicate an incorrect setting of the thermal imaging camera (the event will be highlighted in red); | |
| Normal—normal human body temperature range; | |
| Increased—above the specified normal human body temperature range (the event will be highlighted in red); | |
| Event ID | Identifiers of detection and attribute extraction events (available only for the administrator role, values are separated by commas, for the correct search must be specified in full); |
| External events ID | External identifiers of events (available only for the administrator role, values are separated by commas, for the correct search must be specified in full); |
| Labels | |
| Label | Label name (labels are rules by which the comparison is made); |
| Similarity,% | Lower and/or upper limits of similarity for displaying faces identified by the lists; |
| ID of objects with maximum match result | The ID of the top similar object (event or face) from matching results (match policy, values are separated by commas, for the correct search must be specified in full); |
| Face attributes and properties | |
| Gender | Gender of a person to be detected; |
| Female; | |
| Male; | |
| Age | Lower and/or upper limits of age of a person to be detected; |
| Under 18; | |
| From 18 to 44; | |
| 45 to 60; | |
| Over 60; | |
| Emotion | Emotion of a person to be detected; |
| Anger; | |
| Disgust; | |
| Fear; | |
| Happiness; | |
| Neutral; | |
| Sadness; | |
| Surprise; | |
| A combination of several values is possible; | |
| Mask | Indication of the presence of a mask: |
| Absent; | |
| Medical mask; | |
| Covering the mouth; | |
| A combination of several values is possible; | |
| Face IDs from events | Face IDs of persons that are created in the LUNA PLATFORM 5 system as a result of a detection event and extraction of attributes (available only for the administrator role, values are separated by commas, for the correct search must be specified in full); |
| Body attributes and properties | |
| Upper body colors | Top clothing color specification: |
| Undefined; | |
| Black; Blue; Green; Grey; Orange; Purple; Red; White; Yellow; Pink; Brown; Beige; Khaki; Multicolored; | |
| Lower body type | Bottom clothing type specification: |
| Undefined; | |
| Trousers; | |
| Shorts; | |
| Skirt; | |
| Lower body colors | Bottom clothing color specification: |
| Indefined; | |
| Black; Blue; Green; Grey; Orange; Purple; Red; White; Yellow; Pink; Brown; Beige; Khaki; Multicolored; | |
| Shoes color | Shoe color specification: |
| Undefined; | |
| Black; | |
| White; | |
| Other; | |
| Headwear | Headdress specification: |
| Absent; | |
| Present; | |
| Undefined; | |
| Headwear color | Headdress color specification: |
| Undefined; | |
| Black; | |
| White; | |
| Other; | |
| Backpack | Backpack presence specification: |
| Absent; | |
| Present; | |
| Undefined; | |
| Sleeve | Sleeve length specification: |
| Short; | |
| Long; | |
| Undefined; | |
| Gender determined by body silhouette | Gender of the detected person: Female; Male; Undefined; |
| Age determined by body silhouette | Specification of the age range; |
| Location | |
| City | Event location |
| Area | |
| District | |
| Street | |
| House number | |
| Longitude(-180…180); | |
| Accuracy (0…90); | |
| Latitude(-90…90); | |
| Accuracy (0…90); |
The user needs to select one filter or a combination of filters and click on the “Filter” button for the installed filters to be applied.
To reset the installed filters, click on the “Reset” button. To collapse Filters, click on the filter icon
on the right side of the page.
