"Events archive" section#

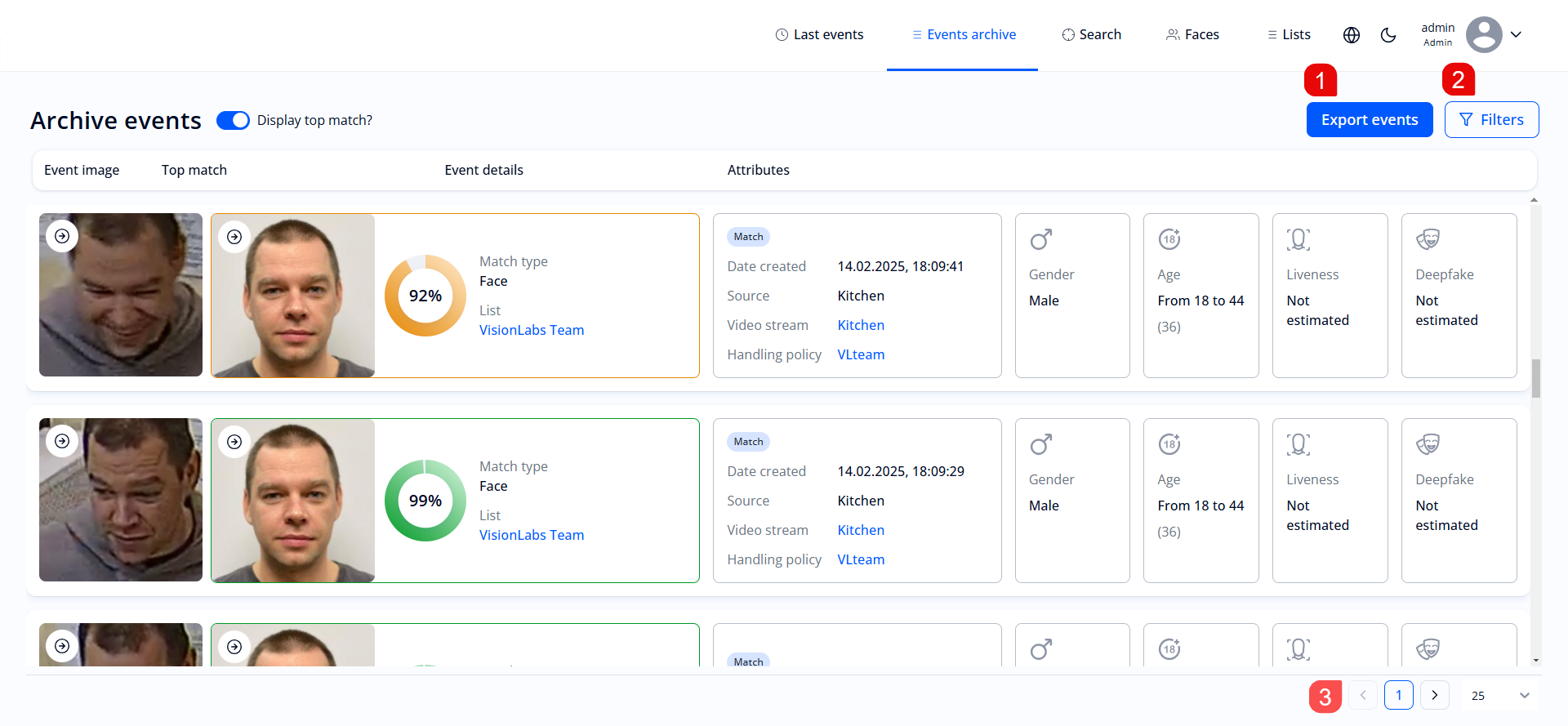

The “Events archive” section is designed to display all events of face and body detection as well as recognition and search for events in archive (Figure 11)..
Receiving and displaying new events in the event archive is performed with minimal delays in near real-time.
If departments are created, and users and event sources are attached to these departments, the user sees only those events that were recorded by the event sources of his department. In order for the user to see the events, the administrator creates a department in the "Departments" section, then adds the user and the selected event source to it.
If there are no filters applied (1), the Service displays the latest detection and identification events identical to those presented in the “Last events” section, as well as events created earlier.
The number of events displayed on the page is set by the switch in the lower right corner of the page. There can be 10, 25, 50 or 100 events in total on one page (3).
Upload events according to the specified parameters by clicking on the "Export events" button (2): fill in the fields, click "Save", then go to the "Tasks" section and download the results.
The displayed data is identical to the data in the “Last events” section.
If no filters are set, only events from the last 30 days are displayed.
Click on a line to open a page with event details.
Click on a reference photo of a face from the control list to open a page with face details.
Archived events filtering#
The Service allows you to filter archived events (1 in Figure 11) to find and display necessary events.

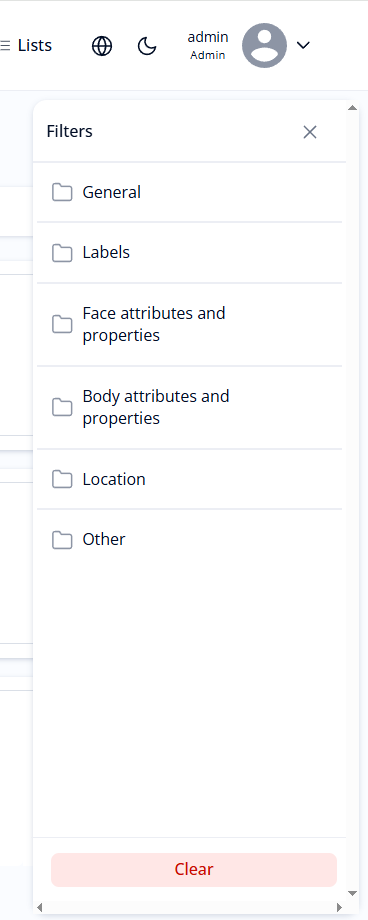

With filters (Figure 12) user can quickly find an event among the last, as well as set a limit for displaying new events on the screen.
A short description of the elements and parameters of the block with filters in the "Events archive" section is presented in the table (Table 4).
Table 4. Filters available to the user to search for archived events:
| Name | Description |
|---|---|
| General | |
| Date from | Start of the search period by date and time of the event; |
| Date to | End of the search period by date and time of the event; |
| Source | Filter by the original source names. The list of sources is shown according to their grouping. Select one or more sources from a group or select all sources in the group. |
| Handling policies | Handling policy names, according to which the face or body in the image was processed. One or several handling policies can be selected for searching. |
| Tags | Selection of one or more tags. - For example, the "Temperature" tag, is intended for displaying information about the temperature of the human body, filtering events by temperature. "Temperature": - Abnormal—very low or very high body temperature of a person, which may indicate an incorrect setting of the thermal imaging camera (the event will be highlighted in red); - Normal—normal human body temperature range; - Increased—above the specified normal human body temperature range (the event will be highlighted in red); - Color coding of temperature values: - abnormal temperature values will be marked in red; - normal temperature values will be marked in green; - increased temperature values will be marked in yellow; |
| Event ID | Identifiers of detection and attribute extraction events. Available only for the administrator role, values are separated by commas, for the correct search must be specified in full; |
| External events ID | External identifiers of events. Available only for the administrator role, values are separated by commas, for the correct search must be specified in full; |
| Labels | |
| Label | Name of the label—rule by which the comparison occurred. Labels are specified when setting up the handling policy |
| Similarity,% | Lower and/or upper limits of similarity for displaying faces identified by the lists; |
| ID of objects with maximum match result | The ID of the top similar object (event or face) from matching results (match policy, values are separated by commas, for the correct search must be specified in full); |
| Face attributes and properties | |
| Gender | Gender of a person to be detected: - Female; - Male; - Not estimated; |
| Age category | Lower and/or upper limits of age of a person to be detected: - Under 18; - From 18 to 44; - 45 to 60; - Over 60; |
| Emotion | Emotion of a person to be detected: - Anger; - Disgust; - Fear; - Happiness; - Neutral; - Sadness; - Surprise; - Not estimated; - A combination of several values is possible; |
| Mask | Indication of the presence of a mask: - Missing; - Medical mask; - Occluded; - Not estimated; - A combination of several values is possible; |
| Liveness | Liveness status selection: - Spoof; - Real; - Unknown; - Not estimated; - A combination of several values is possible; |
| Deepfake (Deepfake license required) | Liveness status selection: - Fake; - Real; - Not estimated; - A combination of several values is possible; |
| Face IDs from events | Face IDs of persons that are created in the SBER NOTCLEMENTINE system as a result of a detection event and extraction of attributes. Values are separated by commas, for the correct search must be specified in full |
| Body attributes and properties | |
| Upper body colors | Top clothing color specification: - Undefined; - Black/Blue/Green/Grey/Orange/Purple/Red/White/Yellow/Pink/Brown/Beige/Khaki/Multicolored; - Not estimated; - A combination of several values is possible; |
| Lower body type | Bottom clothing type specification: - Undefined; - Trousers; - Shorts; - Skirt; - Not estimated; - A combination of several values is possible; |
| Lower body colors | Bottom clothing color specification: - Undefined; - Black/Blue/Green/Grey/Orange/Purple/Red/White/Yellow/Pink/Brown/Beige/Khaki/Multicolored; - Not estimated; - A combination of several values is possible; |
| Shoes color | Shoe color specification: - Undefined; - Black; - White; - Other; - Not estimated; - A combination of several values is possible; |
| Headwear | Headdress specification: - Absent; - Present; - Undefined; - Not estimated; - A combination of several values is possible; |
| Headwear colors | Headdress color specification: - Undefined; - Black; - White; - Other; - Not estimated; - A combination of several values is possible; |
| Backpack | Backpack presence specification: - Absent; - Present; - Undefined; - Not estimated; - A combination of several values is possible; |
| Sleeve | Sleeve length specification: - Short; - Long; - Undefined; - Not estimated; - A combination of several values is possible; |
| Gender by body | Gender of a person to be detected, determined by the image of a body: - Female; - Male; - Undefined; - Not estimated; - A combination of several values is possible; |
| Age category by body | Age range of a person to be detected, determined by the image of a body: - below 18; - from 18 to 44; - 45 to 60; - above 60; |
| Location | |
| City | Event location |
| Area | |
| District | |
| Street | |
| House number | |
| Longitude(-180…180); | |
| Accuracy (0…90); | |
| Latitude(-90…90); | |
| Accuracy (0…90); | |
| Other | |
| Comma-separated track IDs | Specifying event track IDs. Copy the track ID from the event details |
| Add filter by meta | Allows you to fill in a set of blocks to create a filter by the "meta" field. The number of meta filters is unlimited. The following blocks are required to be filled in when creating a filter by meta: - Key—the full path to the required meta field connected with events. - Value—any valid value for the meta field. - Type—selection of the data type stored in this meta field. The data type displays available operators and converts values into the desired data type when sent to the API. - Operator—select operators for a given data type from the list. Operator type depends on the selected data type (for more details see SBER NOTCLEMENTINE API, "get events" section) |
The user selects one filter or a combination of filters and clicks on the “Filter” button for the applied filters to be applied.
To reset the applied filters, click on the “Reset” button. To collapse Filters, click on the filter icon
on the right side of the page.
