Service configuration#

Configure Selinux and Firewall so that they do not block the service.

The service is configured via the Luna Configurator service. The Luna Configurator service requires Postgresql to be installed.

1․ Launch Luna Configurator: http://{host}:5070/dashboard/settings.html—server address, port 5070, /dashboard/settings.html

2․ Specify lunapass as a group to display the desired settings (Figure 9):

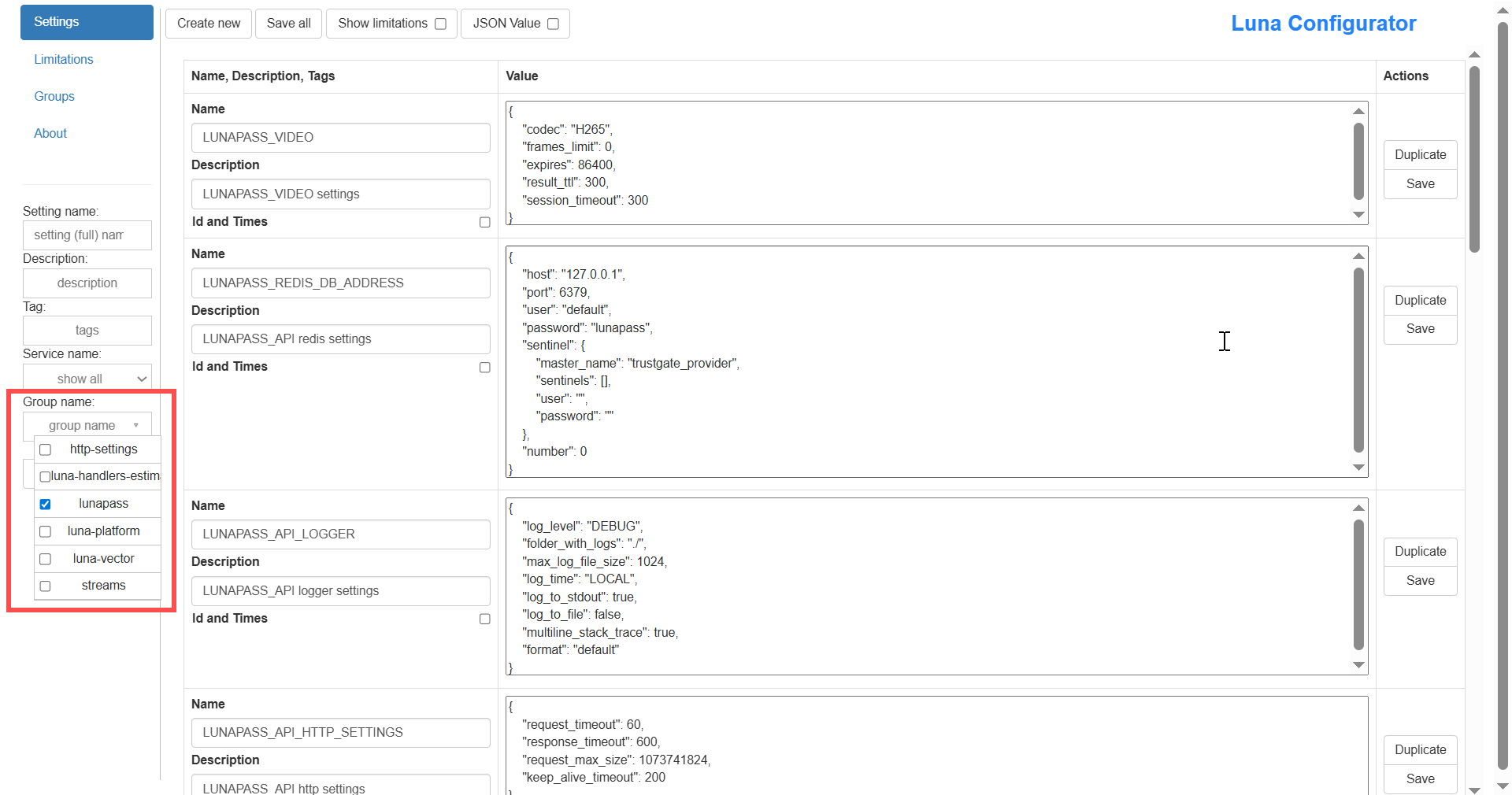

Figure 9. Selecting a group of settings in Luna Configurator

3․ Perform the settings according to the description (Tables 11-19 and Figures 10-20)

Configuring the service in Luna Configurator#

Selecting the operating mode and configuring the JWT package

Table 11. Selecting the operating mode and configuring the JWT packet

Parameter	Description
	Operating mode
env	Mode: development—debug mode with all data; production—basic operation mode with sensitive data hiding. For more information see the "Logging and debugging" section Default: `production`
	Configuration parameters LUNA_PASS.JWT
algorithm	Successful frame encryption algorithm Default: `HS256`
key	Successful frame encryption secret Default: `secret`

Table 12. Session parameters

Parameter	Description
	Session parameters
max_attempts	Maximum number of frames received within 1 session. If the value is exceeded, the current frame is sent as is and the connection is terminated. If no value is present, the frames are checked until there is a successfully passed Liveness Default: `50`
max_liveness_attempts	The maximum number of frames that have reached the Liveness estimation. If the value is exceeded, the current frame is sent as is and the connection is terminated. If no value is present, the frames are checked until there is a successfully passed Liveness Default: `40`
aggregate_frames	Number of frames to aggregate. Must be at least 1 Default: `5`
accept_one_eye_open	Allow one eye to be checked for openness: `false`-both eyes are checked; `true`-one eye is checked. Default: `false`
previous_face_similarity	Similarity threshold. If the similarity value is below the threshold, then it is considered that the frames have different faces and the session is terminated Default: `0.85`
multiface_policy	Policy for selecting a person to check Liveness. Available values: 0—only one face from the frame is permitted to send; 1—the largest face in the frame is sent; 2—the face closest to the center in the frame is sent Default: `0`

Table 13. Parameters for the ROI face recognition zone

Parameter	Description
center_x	The center of the ROI zone along the X axis Default: `50` The `center_x_unit` parameter is responsible for the unit of measurement the of the X coordinate. Possible values: `percent`—measurement in percentage relative to the size of the incoming frame; `px`—measurement in pixels Default: `percent`
center_y	The center of the ROI zone along the Y axis Default: `50` The `center_y_uUnit` parameter is responsible for the unit of measurement of the Y coordinate. Possible values: `percent`—measurement in percentage relative to the size of the incoming frame; `px`—measurement in pixels Default: `percent`
width	The width of the ROI zone Default: `90` The `width_unit` parameter is responsible for the unit of measurement of the zone width. Possible values: `percent`—measurement in percentage relative to the size of the incoming frame; `px`—measurement in pixels Default: `percent`
height	Height of the ROI zone Default: `90` The `height_unit` parameter is responsible for the unit of measurement of the zone height. Possible values: `percent`—measurement in percentage relative to the size of the incoming frame; `px`—measurement in pixels Default: `percent`

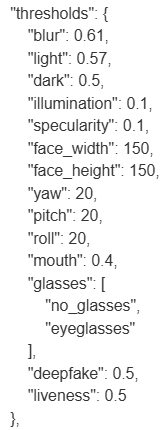

Table 14. Face estimation thresholds

Parameter	Description
blur	Photo blurring Default: `0.61`
light	Backlighting of the photo image Default: `0.57`
dark	Darkening of the photo image Default: `0.5`
illumination	Uniformity of image illumination, 0 – uniform, 1 – there are overexposures Default: `0.1`
specularity	Glare on the image, 0 – no glare, 1 – there are glare Default: `0.1`
face_width	Face frame width Default: `150`
face_height	Face frame height Default: `150`
yaw	Rotation around the vertical axis of the head Default: `20`
pitch	Rotation around the transverse axis of the head Default: `20`
roll	Rotation around the longitudinal axis of the head Default: `20`
mouth	Required accuracy of mouth status assessment Default: `0.4`
glasses	Availability of glasses. Available values: no_glasses—no glasses; eyeglasses—glasses; Default: `['no_glasses', 'eyeglasses']`
deepfake	Required accuracy of the Deepfake estimation. Comment out the line the corresponding threshold to disable checking Default: `0.5`
liveness	Thresholds for the OneShot Liveness test result at which a person will be considered «alive» Default: `0.5`

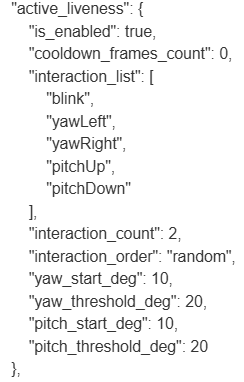

Table 15. ActiveLiveness parameters

Parameter	Description
is_enabled	Active Liveness Default: `true`
cooldown_frames_count	Minimum number of frames after passing active Liveness Default: `0`
interaction_list	Used checks: blink—blink eyes; yawLeft—turn head left; yawRight—turn head right; pitchUp—tilt head up; pitchDown—tilt head down; Default: [`blink`, `yawLeft`, `yawRight`, `pitchUp`, `pitchDown`]
interaction_count	Number of user interactions to use. The maximum number must not exceed the number of checks specified in `interaction_list` Default: `2`
interaction_order	The order of interaction of checks: random—the number of checks corresponding to the value of `interaction_count` is randomly selected from the `interactions_list` list strict—the number of checks corresponding to the value of `interaction_count` is sequentially selected from the `interactions_list` list Default: `random`
yaw_start_deg	Initial angle of rotation at which it is possible to begin interaction with head turns Default: `10`
yaw_threshold_deg	Threshold angle of rotation at which interaction on head turns is considered completed Default: `20`
pitch_start_deg	The initial head tilt angle at which it is possible to begin head tilt interaction Default: `10`
pitch_threshold_deg	The head tilt angle threshold at which the head tilt interaction is considered completed Default: `20`

Table 16. VirtualCameraChecker, FileLogger, VideoRedis parameters

Parameter	Description
	Virtual Camera Checker parameter
is_enabled	Check frames for use of a virtual camera Default: `false`
	File Logger parameters
is_enabled	Saves all incoming photos and the results of their estimation within one session to a file Default: `true`
path	Path for saving file logs Default: `./LOGS`
	Video Redis parameters*
is_enabled	Stitching frames together to create a video and sending session frames to Redis Default: `true`

Table 17. LUNA PASS_VIDEO parameters

Parameter	Description
	LUNA PASS_VIDEO settings
codec	The codec used for video encoding Default: `H265`
frames_limit	Limit the maximum number of frames in a video: If the value is 0, the restriction is not applied. For values greater than 0, the last N frames are taken for the video Default: `0`
expires	Number of seconds for Redis to store frames that were not used in the video. The information is erased after the `expires` time has elapsed Default: `86400`
result_ttl	How long Redis stores information about successful tasks and their По умолчанию: `300`
session_timeout	Number of seconds to start building video after session termination if no bestshot is available Default: `300`

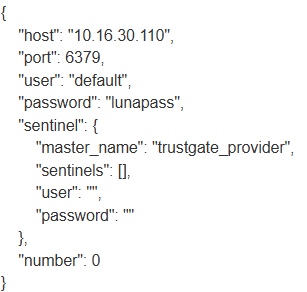

Table 18. LUNAPASS_REDIS_DB_ADDRESS parameters

Parameter	Description
host	Redis DB IP address Default: `127.0.0.1`
port	The port number on which Redis listens for incoming network connections and listens to execute commands from clients Default: `6379`
user	Redis database username No default value
password	Redis database password No default value
master_name	The name of the Redis database master that is monitored and managed by Sentinel Default: `trustgate_provider`
sentinels	List of Sentinel server addresses and ports that will be used by clients to discover and monitor Redis databases. Default: []
user	Sentinel server username No default
password	Sentinel server user password No default
number	Database number Default: `0`

Table 19. LUNAPASS_VIDEO_LOGGER parameters

Parameter	Description
log_level	Sets the level of debug printing, by priority: "ERROR", "WARNING", "INFO", "DEBUG" Default: `INFO`
folder_with_logs	The folder where the logs are stored (the relative path starts from the directory with the application) Default: `./`
max_log_file_size	Maximum log file size in MB before rotation (0 - do not use rotation) Default: `1024`
log_time	The time format used in log entries: "LOCAL" or "UTC" Default: `LOCAL`
log_to_stdout	Enables you to send the log to standard output (stdout). Two options are available - "true" or "false" Default: `true`
log_to_file	Enables you to send the log to a file. Two options are available - "true" or "false" Default: `true`
multiline_stack_trace	Enables or disables multi-line traces in logs. Two options are available - "true" or "false" Default: `true`
format	Log format Default: `Default`

Table 20. LUNAPASS_VIDEO_HTTP_SETTINGS parameters

Parameter	Description
request_timeout	The amount of time between when a new open TCP connection is passed to the server (in seconds) Default: `60`
response_timeout	The amount of time between when the server passes an HTTP request to the application and when the HTTP response is sent to the client (in seconds) Default: `600`
request_max_size	The maximum request size in bytes Default: `1073741824`
keep_alive_timeout	HTTP keep-alive timeout Default: `200`

Table 21. LUNA_REMOTE_SDK_ADDRESS parameters

Parameter

Description

origin

Protocol, IP address and port of the Remote SDK service

Default: http://127.0.0.1:5220

api_version

Remote SDK service API version. Available API version is "1".

Default: 1
