Deploying the Service using Docker#

This section describes how to install and use Docker Compose to deploy the Service. The configuration and installation process must be performed under a superuser account (with root rights). Docker and Docker Compose are not included in the Service distribution package.

The commands below are for AlmaLinux.

Docker and Docker Compose installation#

The Docker installation is described in the official documentation.

The current installation instructions are presented below.

Install the dnf-utils package:

dnf install -y dnf-utils

Set up the stable repository:

dnf config-manager \
    --add-repo \
    https://download.docker.com/linux/centos/docker-ce.repo

Install the latest version of Docker Engine and containerd:

dnf install docker-ce docker-ce-cli containerd.io

Check that the installation was done correctly:

docker -v

Download the current stable release of Docker Compose:

curl -L "https://github.com/docker/compose/releases/download/1.29.2/docker-compose-$(uname -s)-$(uname -m)" -o /usr/local/bin/docker-compose

Set permissions (allow execution):

chmod +x /usr/local/bin/docker-compose

Start Docker:

systemctl start docker
systemctl enable docker

Check Docker status:

systemctl status docker

Registry authorization#

Get service samples from dockerhub.visionlabs.ru/luna (VisionLabs registry) to start them. Log in before doing this—get login and password from VisionLabs specialists, then enter the received data for authorization:

docker login dockerhub.visionlabs.ru/luna --username <username> --password <password>

Enter login and password .

Preparing and unpacking the distribution#

The distribution package is an archive of the form "luna_point_1.10.0".

Place the distribution files in a directory on the server before the installation process. For example, to the /root directory. This directory should not contain other distribution files other than the target files used to install the final product.

Follow these steps.

Switch to the super user:

sudo su

Create a directory for unpacking the distribution package:

mkdir -p /var/lib/point

Move the distribution package to the created directory:

mv /root/luna_point_1.10.0 /var/lib/point

Install the unzip archiver if it is not installed:

dnf install unzip

Go to the distribution package folder:

cd /var/lib/point

Unpack files:

unzip luna_point_1.10.0.zip

Create a symbolic link. The link indicates that it is the current version of the distribution package that is used to run:

ln -s luna_point_1.10.0 current

Service configuration#

Selinux and Firewall must be configured so that they do not block the operation of the Service.

Selinux and Firewall configuration is not described in this manual.

The “luna_point_1.10.0” archive contains an example of Docker deployment in the /example-docker directory (.env and docker-compose.yml files).

Service configuration is performed in the .env configuration file. Enter the necessary settings in the .env configuration file, as shown in Table 2.

Table 2. Configuration parameters

Parameter Description
LUNA POINT database configuration parameters
DATA=./ Mount point for container data (optional)
DOCKER_url= By default: dockerhub.visionlabs.ru/luna/luna-point
CLEMENTINE_USERNAME= Name of the database
By default: lunapoint
CLEMENTINE_PASSWORD= Database password
By default: lunapoint
Tags
Clementine tags:
CLEMENTINE_AUTH_VER= CLEMENTINE_AUTH_VER=v2.0.0;
CLEMENTINE_API_VER= CLEMENTINE_API_VER=v2.1.1
LUNA_POINT_UI_VER= LUNA_POINT_UI_VER=v1.21.1;
LUNA_POINT_API_VER= LUNA_POINT_API_VER=v2.0.1;
Third party service tags:
VL_NOTIFIER_VER= VL_NOTIFIER_VER=2.0.0;
LUNA POINT UI configuration parameters
POINT_UI_HOST= LUNA POINT UI server address
By default: luna_point_ui
POINT_UI_PORT= LUNA POINT UI port
By default: 8080
LUNA CLEMENTINE API configuration parameters
CLEMENTINE_API_HOST= LUNA CLEMENTINE API server address
By default: luna_point_api
CLEMENTINE_API_PORT= LUNA CLEMENTINE UI port
By default: 9010
CLEMENTINE AUTH configuration parameters
CLEMENTINE_AUTH_HOST= LUNA CLEMENTINE AUTH server address
By default: clementine_auth
CLEMENTINE_AUTH_PORT= LUNA CLEMENTINE UI port
By default: 9000
CLEMENTINE_AUTH_DOMAIN= Application domain used to generate links on email
Depending on the configuration of the network environment, this can be a name domain, for example, point.local or the IP address of a service available on the network
This parameter is not critical and is only required if you use an email address to register new users and reset passwords
By default: 127.0.0.1
CLEMENTINE_AUTH_PROTOCOL= Protocol for working in a web environment. Depends on current infrastructure settings and security requirements
Possible values:
- HTTP — protocol without encryption;
- HTTPS — protocol with SSL encryption
By default: HTTP
CLEMENTINE_AUTH_DSN= Connecting CLEMENTINE AUTH to the database
By default: postgresql://clementine:clementine@clementine_db/clementine_auth
LUNA POINT API configuration parameters
LUNA_POINT_API_HOST= LUNA POINT API server address
Default: luna_point_api
LUNA_POINT_API_PORT= The port on which the component will be launched
Default: 8000
LUNA_POINT_API_DSN= Connecting the LUNA POINT API component to the database
Default: =postgresql://lunapoint:lunapoint@db/lunapoint
MACROSCOP_URL= Macroscop VMS server address
MACROSCOP_LOGIN= Login to enter Macroscop VMS at the address specified in MACROSCOP_URL
Default: root
MACROSCOP_PASSWORD= Password for logging into VMS Macroscop at the address specified in MACROSCOP_URL
VIDEOINTELLECT_URL= VMS VideoIntellect server address
VIDEOINTELLECT_LOGIN= Login for logging into VMS VideoIntellect at the address specified in VIDEOINTELLECT_URL
Default: admin
VIDEOINTELLECT_PASSWORD= Password for logging into VMS VideoIntellect at the address specified in VIDEOINTELLECT_URL
Default: admin
LUNA PLATFORM 5 configuration parameters
LUNA_API_HOST= LP5 host. IP address of the server on which the LP5 is deployed
By default: 127.0.0.1
LUNA_API_PORT= LP5 API port
By default: 5000
LUNA_LICENSES_HOST= License service host
By default: 127.0.0.1
LUNA_LICENSES_PORT= License service port
By default: 5120
LUNA_ACCOUNT_EMAIL= Email address to access the account
Default: root@visionlabs.ai
LUNA_ACCOUNT_PASSWORD= Password to access the account
Default: root
Stream service configuration parameters
LUNA_STREAMS_HOST= Stream service server address
By default: 127.0.0.1
LUNA_STREAMS_PORT= Stream service port
By default: 5160
VL NOTIFIER configuration and notification parameters
VLNOTIFIER_HOST= Notification component server address
By default: vlnotifier
VLNOTIFIER_PORT= Notification component port
By default: 9200
VLNOTIFIER_SUBJECT The text in the header of the sent email with notification
By default: Clementine VL Notifier
SMTP configuration parameters
LOG_LEVEL= Logging level. Available Values:
0 — recording only errors;
1 — recording errors and informational messages;
2 — recording errors, informational messages and debugging information
By default: 1
TELEGRAM_BOT_TOKEN= Telegram bot token where notifications will be sent
SMTP_SERVER= SMTP server address
SMTP_PORT= SMTP server port. Available Values:
25 — no encryption;
465 — SSL;
587 — TLS
SMTP_SENDER= Email of the sender to send notifications to users. For example, robot@point.local
SMTP_LOGIN= Login to connect to SMTP server
SMTP_PASSWORD= Password for connecting to SMTP server

The configuration parameters for the SMTP email server are optional and only required if you are using an email address to register new users and reset passwords.

The SMTP configuration parameters are also used for the notification component.

Data loading errors are written to the system log through the logging subsystem with three logging levels.

Internal errors are written to the system log using the logging subsystem:

  • with error severity level if the further execution of the program is impossible;
  • with warning severity level if the program remains functional.

Configuring the web interface#

The Service web interface is configured in the example-docker/config/ui/ directory, config.json file:

{
  "auth": {
    "allowPasswordChange": {
      "ui": true,
      "email": true
    }
  },
  "similarityThresholds": {
    "low": 0.75,
    "medium": 0.95
  },
  "maxImageSize": "2G"
}

Table 3. Web interface configuration parameters

Parameter Description
allowPasswordChange Configuring the registration type in the Service.
All users in the Service interface are created by the administrator. The new user receives a link to his email address to continue registration (for details, see “VisionLabs LUNA POINT. User Manual”).
It is also possible to create a new user with an explicit password in the Service.
To do this, you need to configure the ability to set passwords in the web interface of the Service.
By default: “ui”: true, “email”: true
similarityThresholds The color coding of similarity thresholds:
- similarity values below “low” will be marked in red;
- similarity values between “low” and “medium” will be marked in yellow;
- similarity values above “medium” will be marked in green.
By default: low: 0.75, medium": 0.95
maxImageSize The maximum image size.
Changing this parameter should set CLIENT_MAX_BODY_SIZE for the point-ui container indocker-compose.yml.
By default: 2G

Setting up a logo in the interface#

Users can set their own logo for the interface, which will be displayed in the left corner of the top menu. To do this:

  • Go to the ./media directory. The ./media directory appears when the container starts due to the utility in docker-compose.yml:
  clementine_ui:
...
    volumes:
      - ./config/ui/config.json:/app/config.json
      - ./media/logo.svg:/app/static/media/logo.svg
      - ./media/dark-logo.svg:/app/static/media/dark-logo.svg

  • Move the files with logo images in .svg format to the ./media folder. Name the file "logo.svg" for the light theme and "dark-logo.svg" for the dark theme.

  • In the config.json file in the ./config/ui/ directory, specify the path to the logo images that you placed in step 2 to the ./media folder. Specify the logoUrl and darkLogoUrl keys (Figure 2):

"logoUrl": "static/media/logo.svg",
"darkLogoUrl": "static/media/dark-logo.svg"

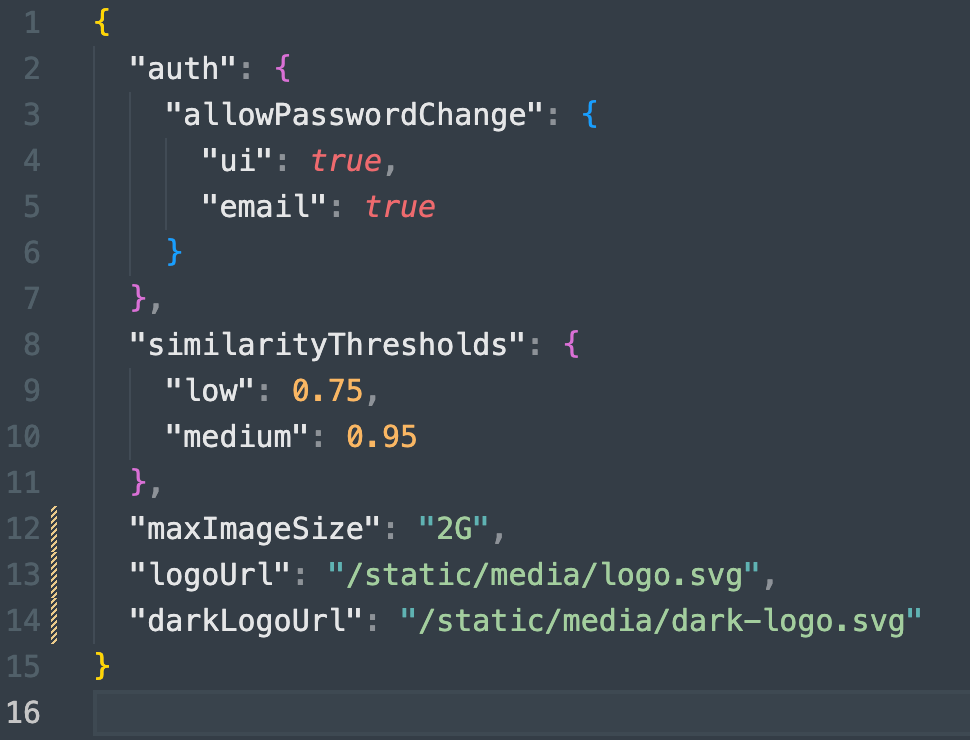

Paths for logo files in config.json
Paths for logo files in config.json

Setting up an alarm button in the "Operator Panel"#

LUNA POINT can integrate with the the security system service. When an event with video analytics occurs (for more details, see "LUNA POINT. User Guide", "Operator Panel" section), the user can send a notification to the service to activate the response team by pressing the "Alarm" button.

To work with "Gulf Stream" and "Laurent 2", the LUNA POINT interface must be deployed with https.

Integration with Gulfstream

To add a button to the interface to send a signal to the Gulfstream security system, add the following settings to the config.json configuration file in the example-docker/config/ui/ directory and fill in the fields:

"gulfstream": {
    "url": "",
    "token": "",
    "object_id": "",
    "object_name": "",
    "addres": "",
    "lat": "",
    "lng": "",
    "inn": "",
    "partner_name": "",
    "alarm_type": ""
  }

Integration with Laurent 2 module

To add a button to the interface to send a signal to the "Laurent 2" module, add the following settings to the config.json configuration file in the example-docker/config/ui/ directory and fill in the fields: fields:

"laurent2": {
    "ip": "",
    "password": "",
    "events": [
      {
        "event_type": "",
        "relay": 1
      },
      {
        "event_type": "",
        "relay": 2
      },
      {
        "event_type": "",
        "relay": 3
      },
      {
        "event_type": "",
        "relay": 4
      }
    ]
  }

Each video analytics event is sent to a separate port of the board, relay. In the event_type value, specify the type of video analytics event in accordance with the names in the LP5 API (Table 2):

Table 2. Video analytics names in LP5 API

Video analytics type

Video analytics name in LP5 API

People counting

people_count

Fight

fights_analytics

Weapon

weapon_analytics

Fire

fire_analytics

Balaclava/Niqab

facecover_analytics

Abandoned objects

bags_analytics

When the panic button is pressed, a signal is sent to the Laurent 2 board and the module reports the alarm.

Configuring integration with VMS#

Configure one of the integrations:

  • with VMS Macroscop;
  • with VMS VideoIntellect.

In the LUNA POINT configuration settings, specify the server address using the http or https protocol in the MACROSCOP_URL parameter for VMS Macroscop or in the VIDEOINTELLECT_URL parameter for VMS VideoIntellect. In the LUNA POINT interface, set the "Internal name” for video surveillance system video streams in the “VMS” section. Specify the "Internal name” when creating streams to view video streams in the “Operator panel” and in the “Video wall” section.

Launching the Service#

Go to Docker directory:

cd /var/lib/point/current/example-docker

To start the Service, enter the command:

start_luna_point.sh

Check the status of all running Docker-containers:

docker-compose ps

Adding an administrator account#

After the Service starts, create a new account, and follow the instructions:

docker-compose exec clementine_auth python3 cli.py createaccount
Specify the login (email address) and password of the account, set the user role.

To log into the Service, you must use the specified email address as a login.

Create a new authorization for the account and follow the instructions:

docker-compose exec clementine_auth python3 cli.py createauth

Run the account role change and follow the instructions:

docker-compose exec clementine_auth python3 cli.py setaccountrole
