"Video analytics" section#

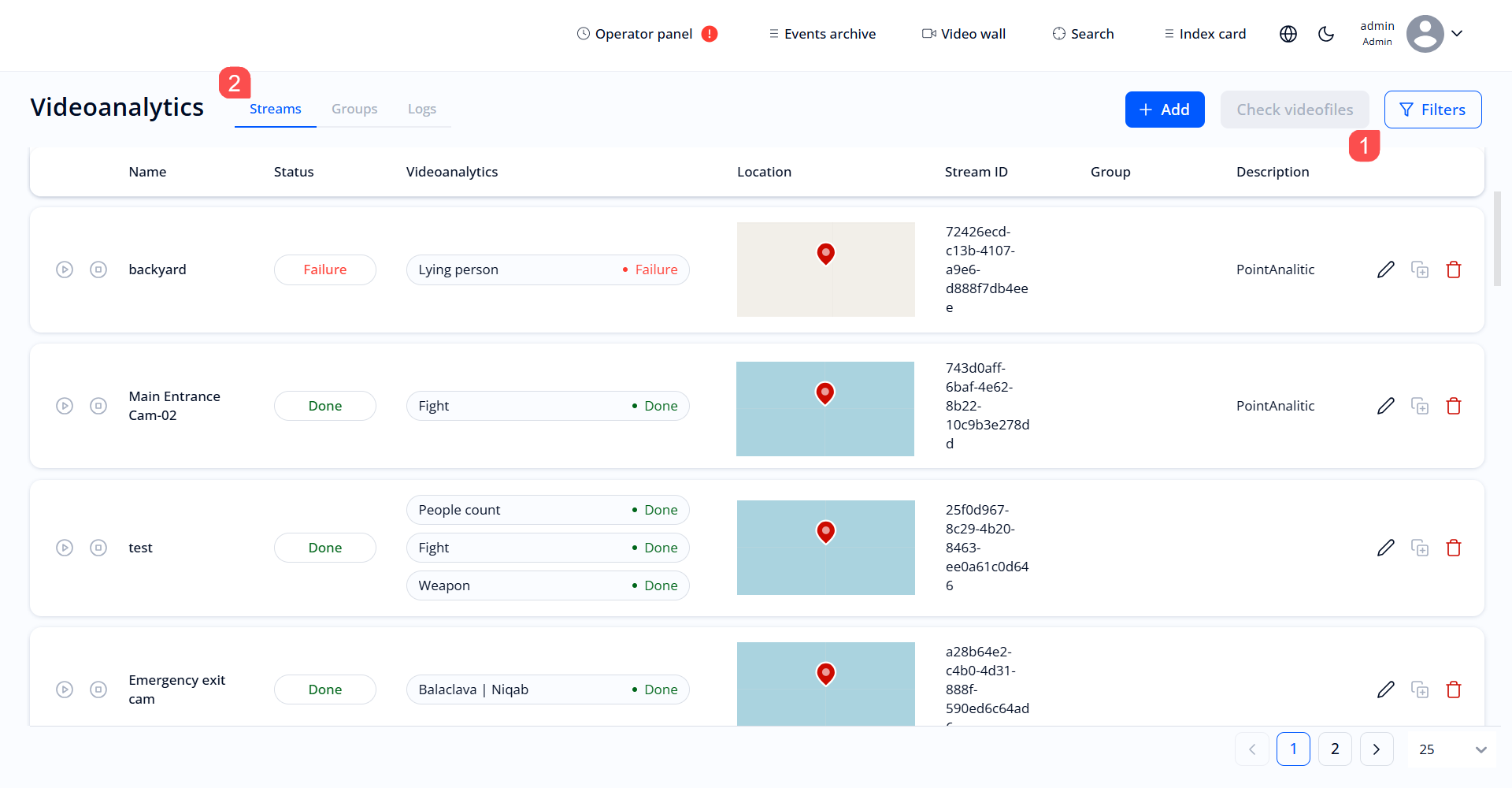

The "Video analytics" section is designed to work with video analytics streams. The section contains the following elements (Figure 93):

The "Streams" tab—for showing video analytics stream data (2):
- Stream name;
- Stream status (e.g. "In progress", "Failure", etc.);
- Type of connected analytics ("Fight", "Fire", "Weapon", "People count");
- Location—map with the camera geotag indication;
- Stream ID—copy to search for streams by ID in filters;
- Group—name of the group to which the video stream is attached;
- Description—an additional information about the video stream;
The "Add" button, which opens a window for selecting the type of video analytics to create a stream;
Filters—for searching streams. Click the button (1) and filter streams by status, video stream name, or group.

Manage video analytics streams using the buttons:

—start stream processing;
—stop stream processing;
—delete stream.

Creating a video analytics stream#

To add a video analytics stream:

1․ Click the "Add" button;

2․ In the opened window, select one or more video analytics types that the event source should process (Figure 94);

3․ Set up the stream to evaluate events with one video analytics (e.g. a lying person) within one source, or with several (e.g. people counting and a weapon detector) within the same source, including identical ones (e.g. two fight detection processes with different thresholds) (Figure 95);

4․ Save the created stream.

Figure 94. Selecting a video analytics type to create a stream

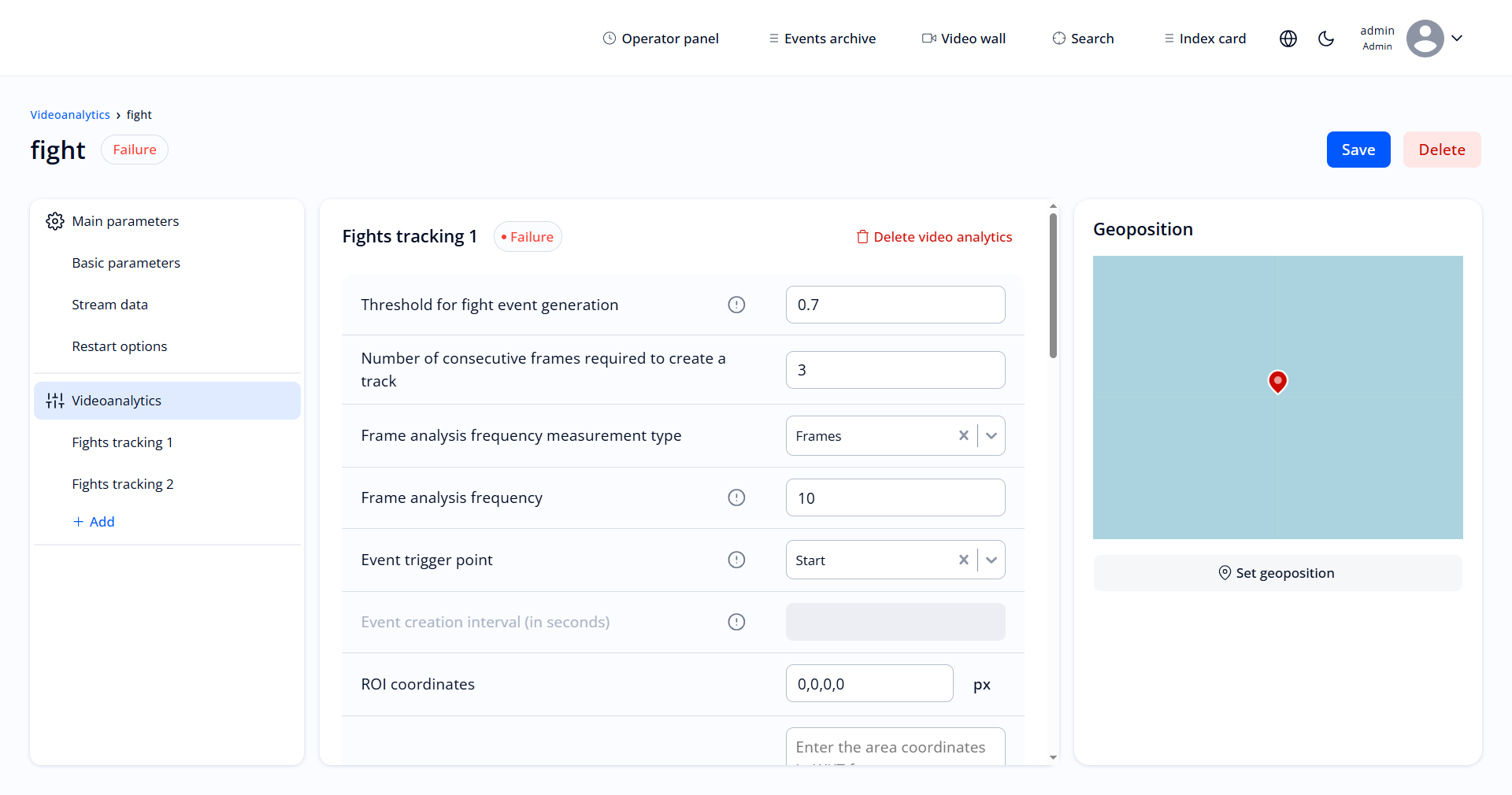

Figure 95. Creation parameter of video analytics stream

Stream creation parameters are divided into basic and personal ones for the selected video analytics type(s) (Table 31).

Table 31. Basic parameters for creating a video analytics stream

Parameter	Description
Basic parameters
Name	The stream name displayed in the Service. Used to identify the source of sent frames.
Description	User information about the video stream
Group	The name of the group to which the stream is attached. Grouping is designed to logically combine streams, for example by territorial principle.
Stream data
Type	Video stream transmission type: Videofile; Stream
Full path to the stream	Path to video stream source: For the "Stream" type `rtsp://some_stream_address`; For the "Videofile" type `https://127.0.0.1:0000/super_server/` To use video files, transfer them to a Docker container
Timing format	Select what the time dimension will be based on: Auto—uses the `pts` value if a timestamp is present in the video or stream, otherwise uses the server time for streams and the frame rate for video files; Pts—based on the timestamp inside the stream or file; Server—based on the server time, available only for streams; Frames—based on the frame rate, available only for video files.
Start time	Starting point for timing. To activate, select `Pts` as the timing format.
Camera rotation angle	Specify the angle to rotate the camera image: 90/180/270 degrees
Restart options
Automatically restart	Enable if you want the stream to restart automatically
Attempts count	Number of attempts to automatically restart the stream
Restart delay (in seconds)	Automatic restart delay of the stream
Video analytics parameters	A set of parameters for the selected type of video analytics
Count type	For "People count" video analytics Defines the condition for triggering the rule: More than ≥: the event is created if the number of people in the frame is equal to or exceeds the specified value; Less than ≤: the event is created if the number of people in the frame is equal to or less than the specified value.
Number of people to create a track	For "People count" video analytics Specify the number of people that meet the count type and must be in the frame to generate an event
Minimum event duration (in seconds)	For "People count" video analytics Specify how many seconds the condition for the number of people must be continuously met for the system to record an event
Threshold for fight/weapon/fire/ balaclava/niqab/lying person/hands up event generation, as well as the threshold of confidence in the presence of an item in the frame of a small model for "Abandoned object" analytics	The minimum value required to create a track. Example: 0.7 would mean 70% chance that a fight is present in the frame.
Minimum object area (in pixels)	Specify the value obtained by multiplying the width and height of the bbox of the object. For 1080p camera resolution, the standard parameter value is 450 px.
Minimum amount of time an item must be left for an event to be created (in seconds)	For "Abandoned object" video analytics Specify the time during which an object must remain motionless or without an owner to register an "Abondoned object" event
Threshold value accounting type	Value calculation type required to generate an event: "Median"—the average value of the results of the last frames is calculated; "Minimum"—the minimum value of the last processed frames is calculated. The specified value must be greater than the threshold value to generate an event
The number of consecutive frames that satisfy the models and item area thresholds required to create a track	Allows you to specify the number of frames required to create a track. The track begins when a detection with the specified video analytics appears on the last frame of the specified number of consecutive frames
Frame analysis frequency measurement type	Frame rate unit: seconds or frames
Frame analysis frequency	Depending on the selected frame analysis frequency measurement type: The interval in seconds after which a frame is selected for analysis. By default, frames are processed every 10 seconds; The interval between frames that will be selected for analysis: the first and every N+1 frame will be taken, where N is the specified value. By default, every 10 frames are processed The selected frames are then analyzed by video analytics and, if the threshold value is met, are selected to create a track
Event trigger point	When to generate events: Start—at the beginning of track creation; End—at the end of the track; Period—during the track operation, at intervals Example: for people counting analytics: if there are 100 people in the frame for an hour, the service can generate events every 5 minutes to track changes or confirm a constant number of people
Event creation interval (in seconds)	The period at which events are created while the track is running
ROI coordinates	A limited frame area where detection occurs. Specify the ROI value in one of the two formats–`px` or `%`. The first two values specify the coordinates of the top left point of the frame. The second two values indicate the width and height of the area of interest, if the values are specified in `px`; and the width and height of area relative to current frame size, if the values are specified in `%`. For example: `0,0,1920,1080 px` or `0,0,100,100%`
DROI coordinates	A limited area inside the ROI. Detection is performed in the ROI, but the best frame is selected only in the DROI. Detection must be completely inside the DROI to be considered the best frame. Specify the coordinates in WKT format. Example: `POLYGON ((30 10, 40 40, 20 40, 10 20, 30 10))` will create one quadrilateral zone.
Track fight/weapon/fire/hands up assessment	Determines the frame with the highest probability of fight/weapon/fire/hands up detection
Track frame with fight/weapon/fire/ hands up	Adds to the event information an image of the frame where the maximum fight/weapon/fire/hands up probability value was reached
Track people's coordinates	Calculates the coordinates of people in the frame
Track the frame with the highest number	Adds to the event information an image of the frame in which the maximum number of people was reached
Event image format	Determines the file format in which the image from the frame is recorded: .png or .jpeg
Image quality	Specifies the image quality from 0 to 1 that should be applied when processing the frame: 1 means good quality, 0 means bad quality.
Image size (in pixels)	Determines the file format in which the image from the frame is recorded
Save event to «Event archive»	Saving an event to the archive for later viewing of event details
Geoposition	Add information about the geographic location of the video stream by clicking the "Set geoposition" button: Longitude (in degrees); Latitude (in degrees); City; Region; District; Street; House
