"Video analytics" section#

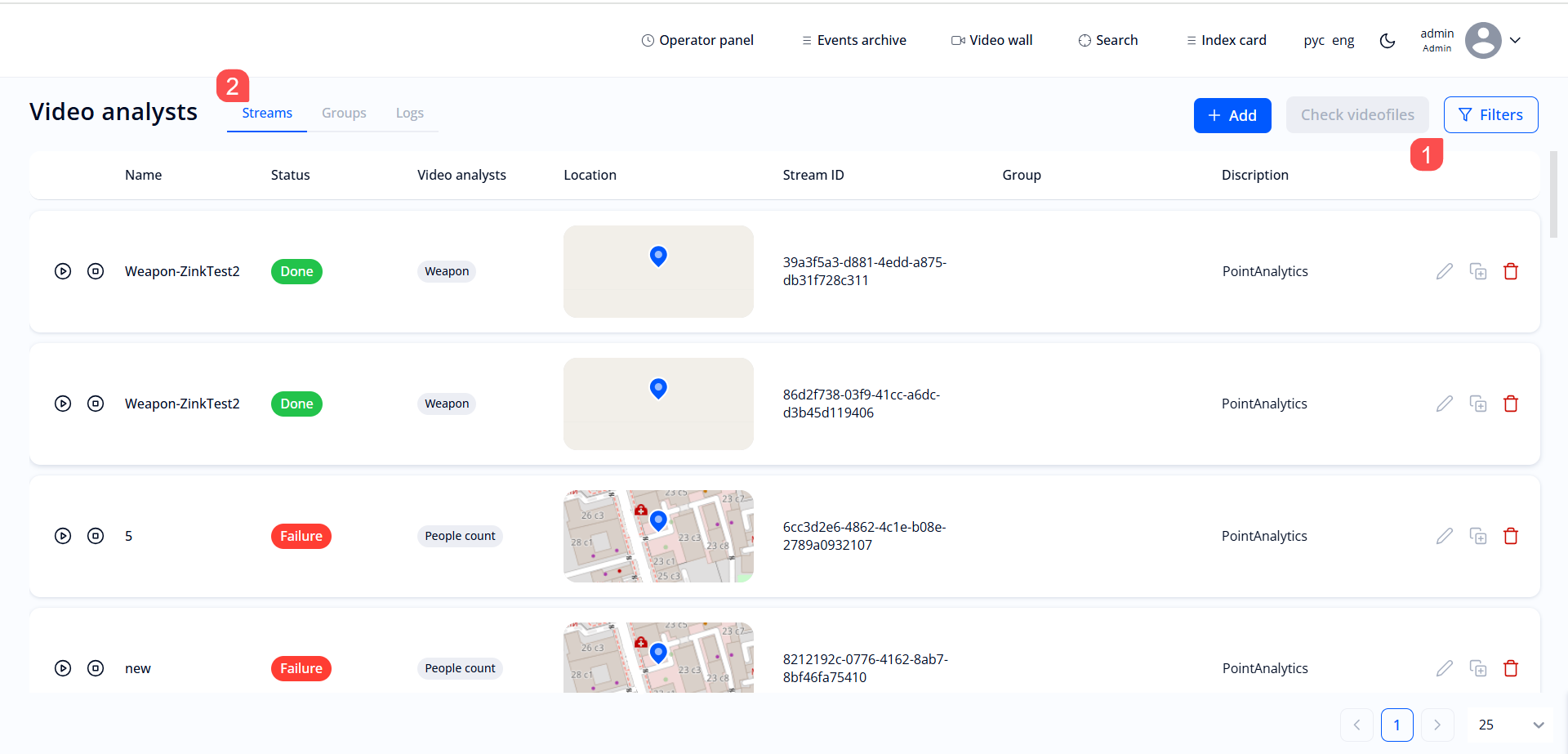

The "Video analytics" section is designed to work with video analytics streams. The section contains the following elements (Figure 91):

The "Streams" tab—for showing video analytics stream data (2):
- Stream name;
- Stream status (e.g. "In progress", "Failure", etc.);
- Type of connected analytics ("Fight", "Fire", "Weapon", "People count");
- Location—map with the camera geotag indication;
- Stream ID—copy to search for streams by ID in filters;
- Group—name of the group to which the video stream is attached;
- Description—an additional information about the video stream;
The "Add" button, which opens a window for selecting the type of video analytics to create a stream;
Filters—for searching streams. Click the button (1) and filter streams by status, ID, name or group.

Manage video analytics streams using the buttons:

—start stream processing;
—stop stream processing;
—delete stream.

Creating a video analytics stream#

To add a video analytics stream:

1․ Click the "Add" button; 2․ In the opened window, select one or more video analytics types that the event source should process (Figure 92); 3․ Configure the stream to evaluate events with people counting or events of a fight, weapon, and fire detection within one or more sources (Figure 93); 4․ Save the created stream.

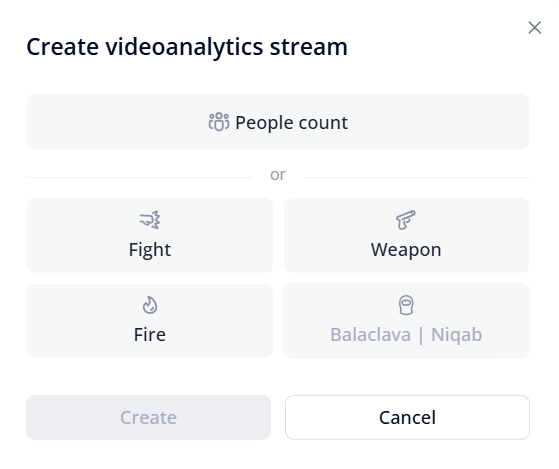

Selecting a video analytics type to create a stream

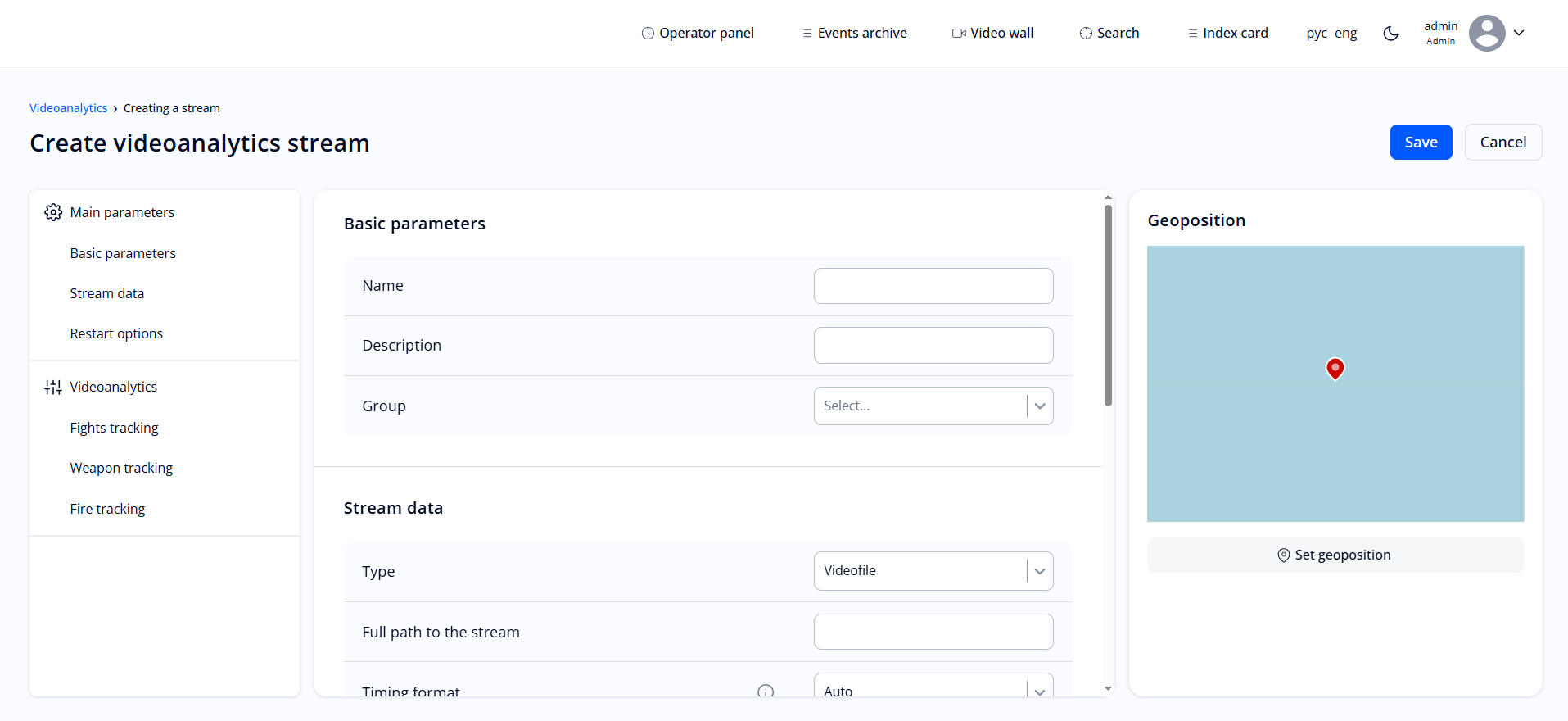

Creation parameter of video analytics stream

Stream creation parameters are divided into basic and personal ones for the selected video analytics type(s) (Table 31).

Table 31. Basic parameters for creating a video analytics stream

Parameter	Description
Basic parameters name	The stream name displayed in the Service. Used to identify the source of sent frames.
Description	User information about the video stream
Group	The name of the group to which the stream is attached
Stream data
Type	Video stream transmission type: Videofile; Stream
Full path to the stream	Путь к источнику видеопотока: For the "Stream" type `rtsp://some_stream_address`; For the "Videofile" type`https://127.0.0.1:0000/super_server/` To use video files and images, transfer them to a Docker container
Timing format	Select what the time dimension will be based on: Auto—uses the `pts` value if a timestamp is present in the video or stream, otherwise uses the server time for streams and the frame rate for video files; Pts—based on the timestamp inside the stream or file; Server—based on the server time, available only for streams; Frames—based on the frame rate, available only for video files.
Start time	Starting point for timing. To activate, select `Pts` as the timing format.
Camera rotation angle	Specify the angle to rotate the camera image: 90/180/270 degrees
Restart options
Automatically restart	Enable if you want the stream to restart automatically
Attempts count	Number of attempts to automatically restart the stream
Restart delay (in seconds)	Automatic restart delay of the stream
Video analytics parameter	A set of parameters for the selected type of video analytics
Threshold for fight/weapon/fire	Minimum value required to create a track. Example: 0.7 would mean 70% chance that there is a fight in the frame
Number of consecutive frames	Allows you to specify the number of frames required to create a track. The track begins when a detection with the specified video analytics appears on the last frame of the specified number of consecutive frames
Frame analysis frequency measurement type	Frame rate unit: seconds or frames
Frame analysis frequency	Depending on the selected frame analysis frequency measurement type: The interval in seconds after which a frame is selected for analysis. By default, frames are processed every 10 seconds; The interval between frames that will be selected for analysis: the first and every N+1 frame will be taken, where N is the specified value. By default, every 10 frames are processed The selected frames are then analyzed by video analytics and, if the threshold value is met, are selected to create a track
Event trigger point	When to generate events: Start the beginning of track creation; End—at the end of the track; Period—during the track operation, at intervals For example, for people counting analytics: if there are 100 people in the frame for an hour, the service can generate events every 5 minutes to track changes or confirm a constant number of people
Event creation interval (in seconds)	The period at which events are created while the track is running
ROI coordinates	A limited frame area where detection occurs. Specify the ROI value in one of the two formats–`px` or `%`. The first two values specify the coordinates of the top left point of the frame. The second two values indicate the width and height of the area of interest, if the values are specified in `px`; and the width and height of area relative to current frame size, if the values are specified in `%`. For example: `0,0,1920,1080 px` or `0,0,100,100%`
Track fight/weapon/fire assessment	Determines the frame with the highest probability of fight/weapon/fire
Track frame with fight/weapon/fire	Adds to the event information an image of the frame where the maximum weapon fight/fire/weapon probability value was reached
Track people's coordinates	Calculates the coordinates of people in the frame
Track the frame with the highest number of people	Adds to the event information an image of the frame in which the maximum value for the number of people was reached
Event image format	Determines the file format in which the image from the frame is recorded: .png or .jpeg
Image quality	Specifies the image quality from 0 to 1 that should be applied when processing the frame: 1 means good quality, 0 means bad quality.
Image size (in pixels)	Determines the file format in which the image from the frame is recorded
Save event to «Event archive»	Saving an event to the archive for later viewing to the event details
Geoposition	Add information about the geographic location of the video stream by clicking the "Set geoposition" button: Longitude (in degrees); Latitude (in degrees); City; Region; District; Street; House
